FORESEE F-500B 800 KG Sliding Gate Motor UAE
Price 1,499 AEDIn Stock
The FORESEE F-500B 800 KG Sliding Gate Motor is a powerful automatic gate opener designed for sliding gates weighing up to 800 KG. Operating from a 220–240V AC power supply, the F-500B combines a 250W AC motor with reliable electronic control, obstacle detection and emergency manual operation.
With a gate movement speed of approximately 11.5 metres per minute, the FORESEE F-500B provides smooth and efficient automatic opening and closing for residential, commercial and compatible industrial sliding gate applications.
The motor also incorporates thermal protection and resistance detection technology. When abnormal resistance is detected during gate movement, the control system can respond according to its configured safety operation.
Key Features
- FORESEE F-500B sliding gate motor
- Suitable for sliding gates up to 800 KG
- 220–240V AC working voltage
- 250W input power
- 1400 RPM motor speed
- Gate movement speed up to 11.5 m/min
- 120°C motor thermal protection
- Resistance and obstacle detection
- Rebound function when resistance is detected
- Rolling-code remote control technology
- Low-noise AC motor operation
- Emergency manual release during power failure
- Compatible with photocell safety sensors
- Compatible with flashing warning light
- Suitable for residential and commercial sliding gates
Technical Specifications
| Brand | FORESEE |
| Model | F-500B |
| Product Type | Automatic Sliding Gate Motor |
| Maximum Gate Weight | 800 KG |
| Working Voltage | 220–240V AC |
| Input Power | 250 W |
| Motor Speed | 1400 RPM |
| Gate Running Speed | 11.5 m/min |
| Thermal Protection | 120°C |
| Operating Temperature | -20°C to +40°C |
| Obstacle Detection | Resistance Detection with Rebound Function |
| Remote Technology | Rolling Code |
| Manual Operation | Emergency Manual Release |
| Application | Residential & Commercial Sliding Gates |
FORESEE F-500B 220–240V Automatic Sliding Gate Opener
The FORESEE F-500B is designed to automate compatible sliding gates weighing up to 800 KG. Its AC motor and electronic control system provide dependable automatic opening and closing for villas, residential properties, commercial buildings and vehicle entrances.
800 KG Sliding Gate Capacity
The F-500B supports compatible sliding gates weighing up to 800 KG, making it suitable for medium and heavy residential or commercial sliding gate applications.
Gate weight is only one factor when selecting an automatic gate motor. Gate length, wheel condition, track alignment, usage frequency and mechanical resistance should also be checked before installation.
250W AC Gate Motor
The FORESEE F-500B uses a 250W AC motor operating from a 220–240V AC power supply.
The motor operates at approximately 1400 RPM and incorporates thermal protection to help protect the motor from excessive operating temperature.
11.5 Metres Per Minute Gate Speed
The F-500B provides a sliding gate movement speed of approximately 11.5 metres per minute, allowing efficient automatic vehicle entrance operation.
Obstacle Detection & Rebound Function
The FORESEE F-500B electronic system can detect changes in resistance while the gate is moving. When abnormal resistance is detected, the automation can activate its rebound function according to the programmed control settings.
Photocell safety sensors should also be installed where required to provide additional obstacle detection across the gate entrance.
Rolling Code Remote Control
The FORESEE F-500B supports rolling-code remote control technology for convenient wireless operation of the automatic sliding gate.
Compatible transmitters must be correctly programmed to the installed receiver before they can operate the gate.
Thermal Protection
The AC motor incorporates thermal protection rated at approximately 120°C. This provides additional protection against excessive motor temperature during operation.
Manual Release During Power Failure
The FORESEE F-500B provides emergency manual operation, allowing the automatic sliding gate to be operated manually when electrical power is unavailable or servicing is required.
Photocell Safety Sensor Support
Compatible infrared photocell sensors can be added to the F-500B gate automation system to provide additional safety detection across the vehicle entrance.
When the photocell beam is interrupted, the gate control system responds according to the programmed safety configuration.
Flashing Warning Light
A compatible flashing warning light can also be connected to provide a visible indication while the automatic sliding gate is operating.

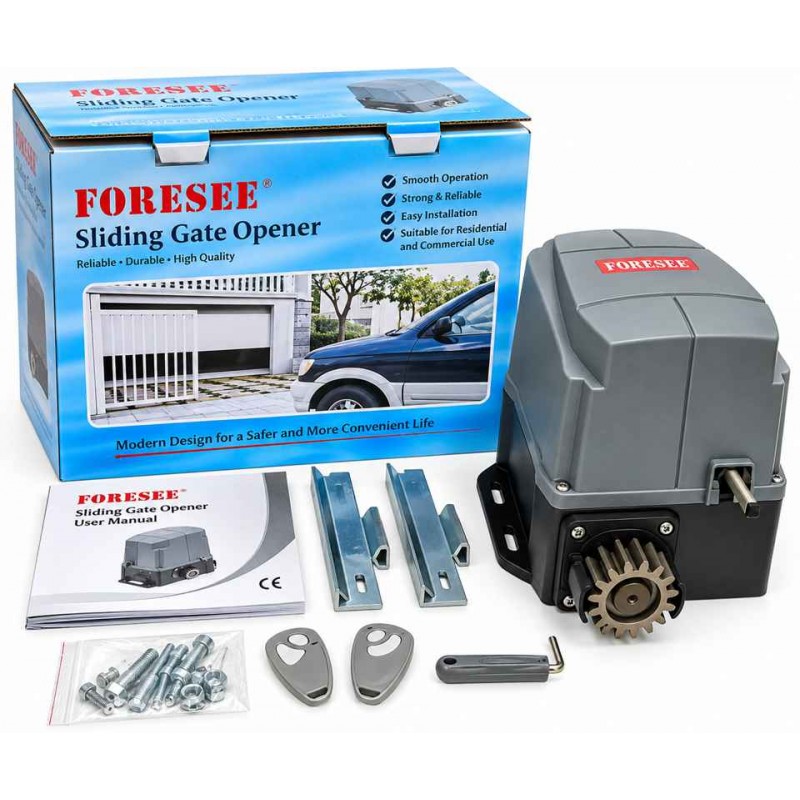

FORESEE F-500B Complete Kit
- 1 × FORESEE F-500B 800 KG Sliding Gate Motor
- 2 × Compatible Rolling Code Remote Controls
- 1 × Pair of Photocell Safety Sensors
- 1 × Built-In Motor Control Unit
- 4 × 1-Metre Nylon Gear Racks
- 1 × Flashing Warning Light
- 1 × Push Button
Residential & Commercial Applications
- Villa sliding gates
- Residential driveway gates
- Apartment building entrances
- Residential compounds
- Commercial property gates
- Office entrances
- Warehouse gates
- Parking entrances
- Automatic vehicle access gates
Professional FORESEE F-500B Installation
Professional installation is recommended for the FORESEE F-500B. Before installing the motor, the sliding gate should move smoothly and freely by hand without excessive mechanical resistance.
The motor foundation, gear rack, gate stops, safety photocells, electrical wiring and electronic settings should be correctly installed and adjusted for reliable automatic gate operation.
FORESEE F-500B 800 KG Sliding Gate Motor Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies FORESEE F-500B 800 KG sliding gate motors in UAE for residential and commercial automatic sliding gate applications.
Supply, professional installation, replacement, maintenance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
