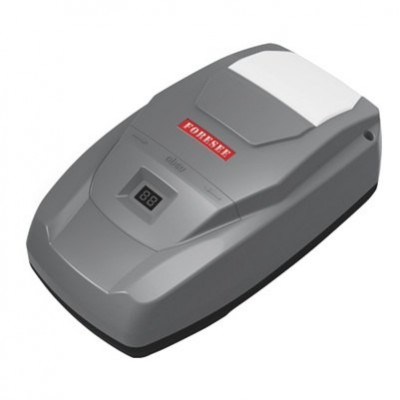

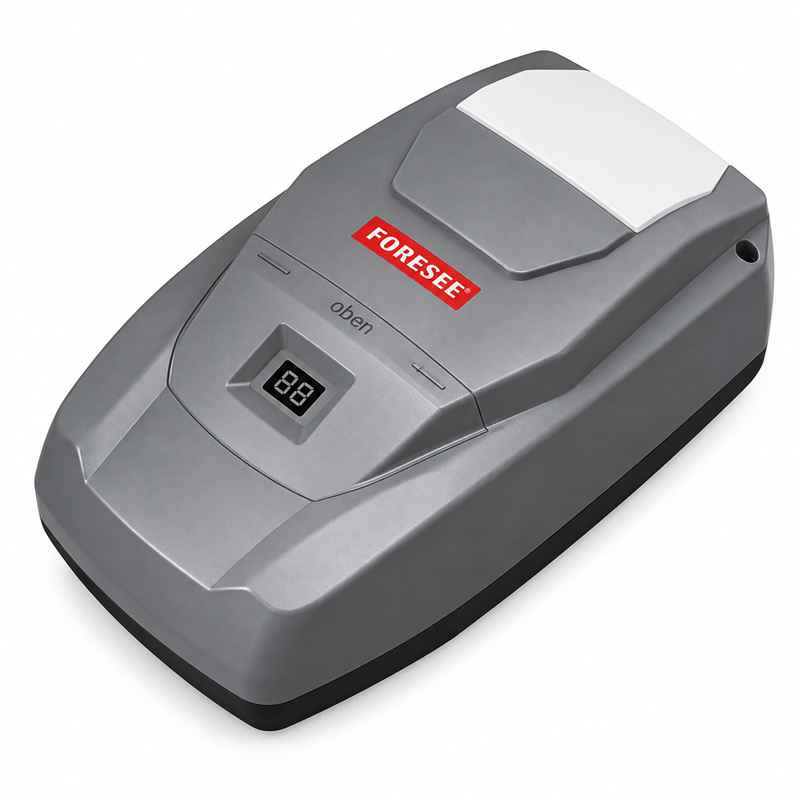

FORESEE F-390 Garage Door Opener UAE

The FORESEE F-390 Garage Door Opener is a powerful automatic garage door motor designed for residential sectional and overhead garage door applications. With up to 1200N pulling force, the F-390 provides smooth, quiet and reliable automatic opening and closing for compatible garage doors.

Designed for convenient everyday operation, the FORESEE F-390 combines electronic travel control, remote-control operation, automatic closing options and safety functions in a compact ceiling-mounted garage door automation system.

The F-390 is suitable for villas, townhouses, residential garages and other compatible sectional garage doors requiring dependable automatic operation.

Key Features

• FORESEE F-390 automatic garage door opener
• Powerful 1200N pulling force
• Suitable for sectional garage doors
• 220–240V AC power supply
• 180W rated power
• Approximately 110 mm/s opening speed
• Electronic travel programming
• Remote control operation
• Automatic closing function
• Obstacle detection safety function
• Manual emergency release
• Integrated courtesy light
• Smooth and quiet operation
• Suitable for residential garage doors

Technical Specifications

FORESEE F-390 1200N Automatic Sectional Garage Door Motor

The FORESEE F-390 is designed to provide convenient automatic operation for compatible residential garage doors. The ceiling-mounted operator drives the garage door through its rail and trolley system, providing controlled opening and closing at the press of a remote-control button.

Powerful 1200N Garage Door Opener

With a maximum pulling force of 1200N, the FORESEE F-390 provides powerful garage door automation for compatible sectional and overhead garage doors.

The correct opener should always be selected according to the garage door size, weight, spring balance and mechanical condition.

180W Garage Door Motor

The FORESEE F-390 operates from a 220–240V AC power supply and has a rated power of approximately 180W.

The motor provides dependable everyday operation while maintaining a compact ceiling-mounted design suitable for residential garage installations.

110 mm/s Opening & Closing Speed

The F-390 provides a garage door movement speed of approximately 110 mm/s, allowing smooth and efficient opening and closing.

Electronic Travel Programming

The FORESEE F-390 uses electronic travel programming to learn the required fully open and fully closed positions of the garage door.

Correct initial travel programming is important after installation so the opener knows where to stop during each opening and closing cycle.

Automatic Closing Function

The F-390 supports a programmable automatic closing function. When enabled, the garage door can close automatically after the selected waiting period.

Appropriate safety devices should be installed and correctly tested whenever automatic closing is enabled.

Obstacle Detection Safety

The FORESEE F-390 includes electronic safety functionality designed to respond when abnormal resistance is detected during garage door movement.

The garage door must be correctly balanced and adjusted for the safety system to operate reliably.

Remote Control Operation

Compatible FORESEE remote controls can be programmed into the F-390 receiver for convenient wireless garage door operation.

Additional compatible transmitters can also be programmed when several family members or users require garage access.

Manual Emergency Release

The garage door opener includes a manual emergency release. During a power failure or maintenance, the trolley can be released so that a correctly balanced garage door can be operated manually.

Integrated Courtesy Light

The FORESEE F-390 incorporates a courtesy-light function to provide illumination when the garage door opener is activated.

Garage Door Rail & Drive System

The F-390 works with a compatible garage door opener rail and drive system. The rail length should be selected according to the height and travel requirements of the sectional garage door.

Correct rail installation and alignment are important for smooth and reliable garage door movement.

Suitable for Sectional Garage Doors

The FORESEE F-390 is suitable for compatible sectional garage doors commonly installed in villas and residential properties.

Before installing the motor, the garage door should be correctly balanced by its spring system and should move smoothly by hand.

Applications

• Villa garage doors
• Residential sectional garage doors
• Townhouse garages
• Private residential garages
• Automatic overhead garage doors
• Home parking garages

Professional FORESEE F-390 Installation

Professional installation is recommended for the FORESEE F-390. The garage door springs, tracks, rollers, rail, trolley, emergency release and electronic travel limits should all be correctly installed and adjusted.

The garage door should move smoothly and remain correctly balanced before the automatic opener is connected.

FORESEE F-390 Garage Door Opener Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies FORESEE F-390 garage door openers in UAE for residential sectional and compatible overhead garage doors.

Supply, professional installation, programming, maintenance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
