DITEC ZEN Remote Control for Automatic Gates UAE

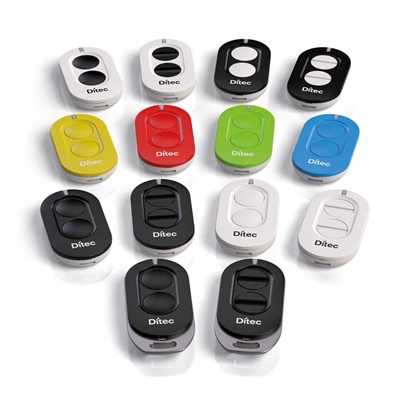

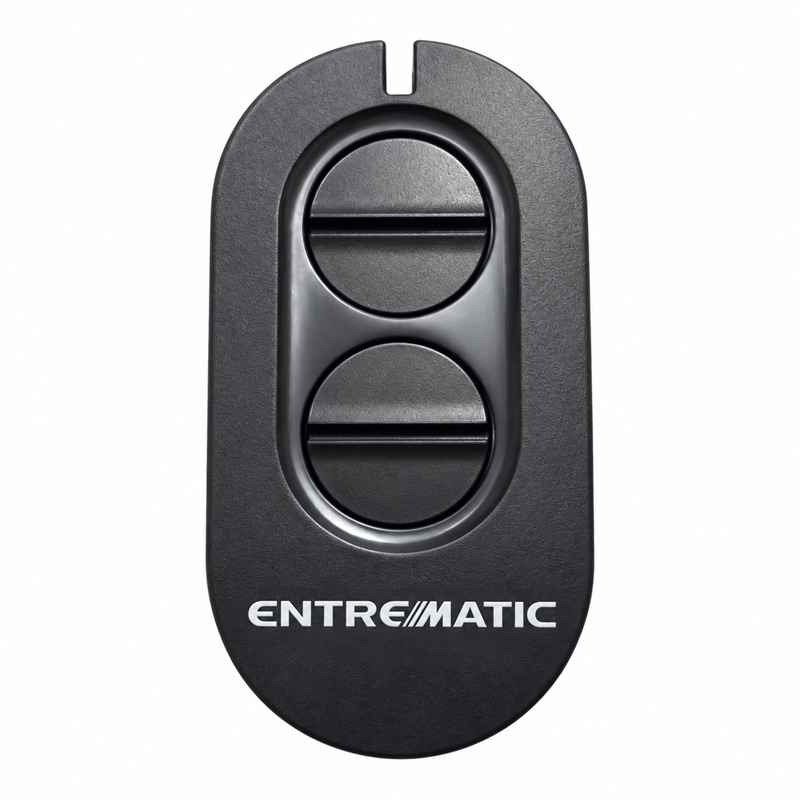

The DITEC ZEN Remote Control is a modern radio transmitter designed for compatible DITEC automatic gates, garage doors and access automation systems. The ZEN range is available with 2-channel and 4-channel configurations, providing convenient wireless control for residential, commercial and industrial automation applications.

DITEC ZEN transmitters are available in 433.92 MHz and 868.35 MHz versions and support multiple transmission protocols, including DITEC rolling code, fixed code, Dip Switch and advanced AES 128-bit Encrypted and Protected modes.

With its compact design, large push buttons and secure radio technology, the DITEC ZEN gate remote control provides easy everyday operation while maintaining compatibility with suitable existing DITEC receivers and automation installations.

The remote can be configured through acquisition from a compatible receiver or by cloning a pre-programmed transmitter where supported. Advanced transmitter configuration and management are also available through the DITEC ZENPAD programming unit and ZEN MANAGER software.

Key Features

• Original DITEC ZEN remote control
• Available in 2-channel and 4-channel versions
• 433.92 MHz and 868.35 MHz versions available
• DITEC rolling code technology
• Rolling code with over 4 billion combinations
• Fixed code support
• Dip Switch protocol support
• AES 128-bit Encrypted mode
• AES 128-bit Protected mode
• Large buttons for convenient operation
• Visible LED transmission indicator
• Compact handheld design
• Compatible with suitable existing DITEC systems
• Receiver programming supported
• Cloning from compatible pre-programmed transmitters
• ZENPAD and ZEN MANAGER support

Technical Specifications

*Nominal radio range depends on the specific ZEN model, receiver, antenna, installation conditions and surrounding environment.

DITEC ZEN 2 & 4 Channel Remote Control

The DITEC ZEN range includes both 2-channel and 4-channel remote controls. Multiple channels allow one transmitter to operate different compatible automation systems or functions when correctly programmed.

For example, a multi-channel ZEN remote can be configured for a sliding gate, swing gate, garage door or another compatible DITEC automation system.

433.92 MHz & 868.35 MHz Versions

DITEC ZEN transmitters are available in 433.92 MHz and 868.35 MHz versions. The correct frequency and transmitter version must be selected according to the installed DITEC receiver and automation system.

Before purchasing a replacement remote control, check the existing transmitter or receiver to confirm frequency and protocol compatibility.

DITEC Rolling Code Technology

Compatible DITEC ZEN transmitters support rolling code technology with more than 4 billion code combinations. Rolling code provides secure radio communication between the transmitter and compatible receiver.

The ZEN range also supports additional protocols depending on the selected transmitter configuration, including fixed code and Dip Switch systems.

AES 128-bit Security

The DITEC ZEN range supports advanced AES 128-bit encrypted communication through Encrypted and Protected operating modes. These modes are designed for installations requiring enhanced transmitter security.

DITEC ZEN Remote Programming

The DITEC ZEN remote control can be configured by acquisition through a compatible receiver or by cloning a suitable pre-programmed transmitter where the system and selected protocol support this function.

Additional transmitter management and configuration functions are available using the DITEC ZENPAD programming unit and ZEN MANAGER software.

Compatible DITEC Automation Systems

DITEC ZEN transmitters can be used with compatible DITEC radio receivers installed with various automatic gate and door automation systems.

• DITEC sliding gate motors
• DITEC swing gate motors
• DITEC garage door openers
• DITEC parking and vehicle access systems
• Compatible DITEC radio receivers
• Compatible automatic gate systems using DITEC universal receivers

Applications

• Automatic sliding gates
• Automatic swing gates
• Garage door openers
• Villa entrance gates
• Residential buildings
• Gated communities
• Commercial properties
• Office parking entrances
• Factories and warehouses
• Industrial gate automation
• Vehicle access control systems
