DEA LIVI 403 600 KG Sliding Gate Motor UAE

The DEA LIVI 403 600 KG Sliding Gate Motor is a reliable automatic gate operator designed for residential sliding gates weighing up to 600 KG. Engineered by DEA System, the LIVI series combines dependable electromechanical operation with integrated electronic control and advanced gate safety functions.

The DEA LIVI 403 features a built-in control board with integrated 433 MHz radio receiver, limit switches and encoder technology for gate position management and obstacle detection. Its self-locking electromechanical design provides secure and convenient automatic operation for villas, private homes and residential entrances.

Available as a complete automation kit, the DEA LIVI 403 can be supplied with remote controls, photocell safety sensors, flashing light, nylon gear racks and push button for a complete sliding gate automation solution.

Key Features

• Original DEA System sliding gate motor
• DEA LIVI 403 series
• Suitable for sliding gates up to 600 KG
• 230V AC operation
• Self-locking electromechanical operator
• Built-in electronic control board
• Integrated 433 MHz radio receiver
• Built-in limit switches
• Encoder for gate position management
• Obstacle detection capability
• Controlled input for external safety devices
• Compatible with photocell safety sensors
• Manual release for emergency operation
• Designed for residential sliding gates
• Complete automation kit available

Technical Specifications

DEA LIVI 403 Automatic Sliding Gate Opener for Gates Up to 600 KG

The DEA LIVI 403 is designed for residential automatic sliding gates weighing up to 600 KG. Its compact integrated design combines the gate operator, electronic control system and radio receiver in one automation solution.

600 KG Sliding Gate Capacity

The DEA LIVI 403 is suitable for compatible sliding gates weighing up to 600 KG, making it an excellent choice for villas, private residences, apartment entrances and other residential vehicle-access applications.

The gate should move freely along its track before automation. Gate condition, wheel condition, rack alignment and installation geometry should always be checked when selecting the motor.

230V Self-Locking Gate Motor

The LIVI 403 uses a 230V self-locking electromechanical operator designed to provide dependable automatic opening and closing of compatible sliding gates.

The self-locking transmission helps maintain the gate position when the operator is stopped during normal automatic operation.

Built-In DEA Control Board

The DEA LIVI 403 incorporates its electronic control board inside the motor housing, providing a compact installation without requiring a separate external control-panel enclosure for the standard automation configuration.

The control system manages the gate motor and allows compatible command and safety accessories to be connected.

Integrated 433 MHz Radio Receiver

An integrated 433 MHz radio receiver provides wireless gate operation using compatible DEA remote controls.

Additional compatible transmitters can be programmed according to the installed DEA control-board and receiver configuration.

Encoder Position Management

The 230V LIVI version with encoder uses electronic position information to manage gate movement. Encoder feedback allows the control system to monitor the gate during automatic opening and closing.

Obstacle Detection

Encoder technology also supports obstacle detection. When correctly installed and programmed, the control system can monitor abnormal resistance during gate movement and react according to its configured safety settings.

Limit Switch System

The DEA LIVI 403 is equipped with limit switches to establish the gate's fully open and fully closed positions. Correct adjustment of these limits is important for reliable automatic operation.

External Safety Device Support

The control system provides controlled inputs for compatible external safety devices. This allows equipment such as photocell sensors to be incorporated into the automatic gate installation.

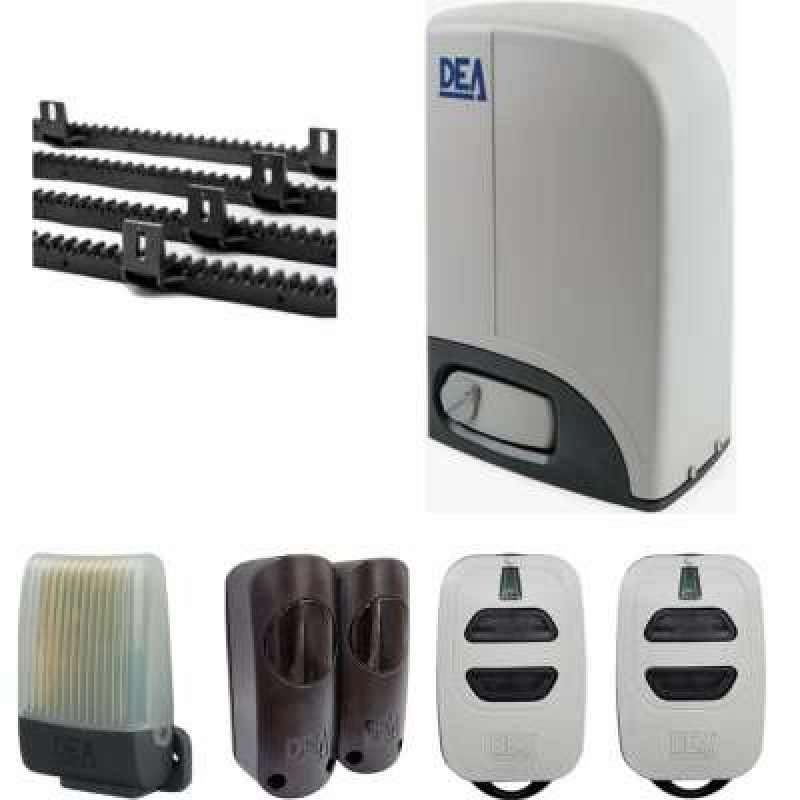

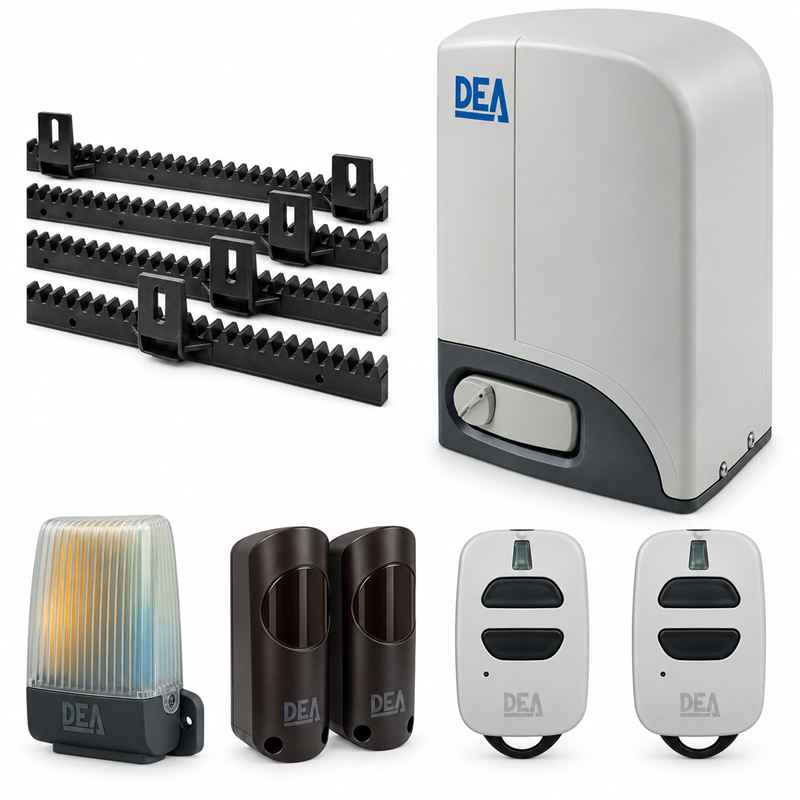

DEA LIVI 600 KG Complete Kit Includes

• 1 × DEA LIVI 403 Sliding Gate Motor
• 1 × DEA 212E Integrated Control Unit
• 2 × DEA GT2 Remote Controls
• 1 × Pair of DEA LINEAR Photocell Sensors
• 1 × Built-In Radio Receiver
• 1 × Flashing Warning Light
• 4 × 1-Metre Nylon Gear Racks
• 1 × Push Button

DEA LINEAR Photocell Safety Sensors

The complete automation kit includes a pair of DEA LINEAR photocells. When correctly installed and configured, the sensors help detect obstacles across the gate entrance and support safer automatic gate operation.

4 Metres Nylon Gear Rack

Four 1-metre nylon gear rack sections are included with the complete kit. The rack is installed horizontally along the sliding gate and engages with the motor pinion to move the gate during opening and closing.

Manual Release During Power Failure

The DEA LIVI operator incorporates a manual release system so that the sliding gate can be disengaged and moved manually when electrical power is unavailable or servicing is required.

Residential Applications

• Villa sliding gates
• Private residential gates
• Home driveway entrances
• Apartment building entrances
• Residential compounds
• Small parking entrances
• Automatic vehicle access gates

Professional Installation

Professional installation is recommended for the DEA LIVI 403. The sliding gate should move smoothly before automation, and the motor foundation, nylon rack, limit switches, photocell sensors and electronic settings should be correctly installed and configured.

DEA LIVI 403 Sliding Gate Motor Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies DEA LIVI 403 600 KG sliding gate motors in UAE for residential automatic sliding gate applications.

Supply, professional installation, replacement and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
