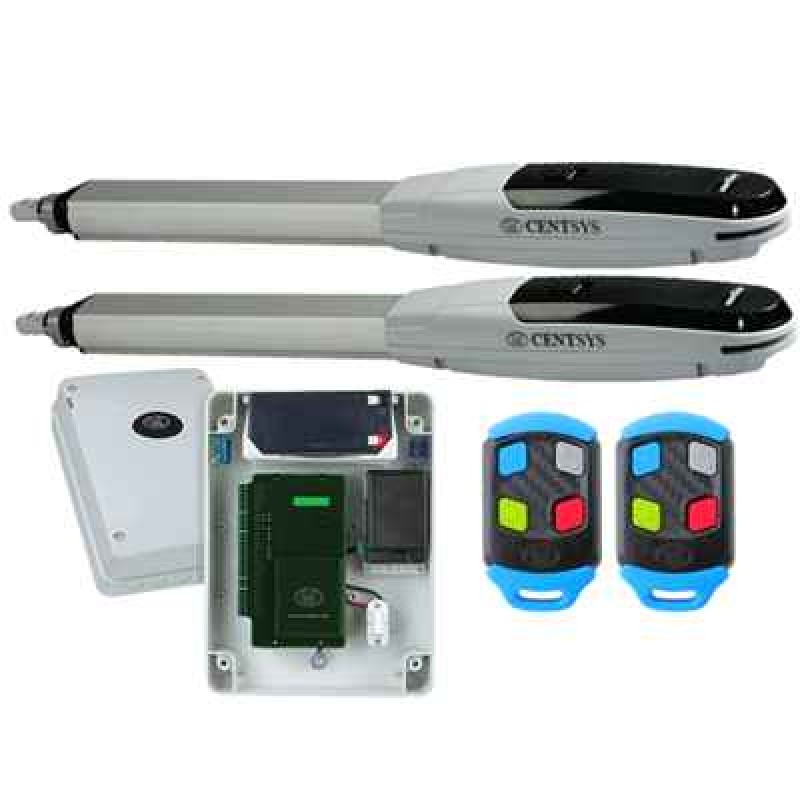

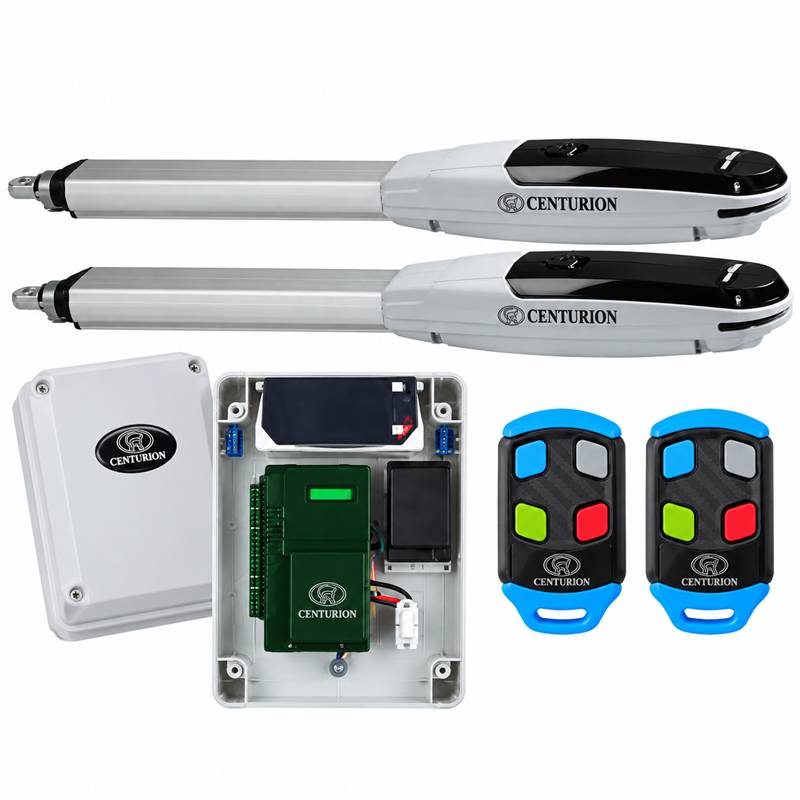

CENTURION VANTAGE SMART Swing Gate Motor UAE

The CENTURION VANTAGE SMART Swing Gate Motor is a powerful linear automatic gate operator designed for residential, commercial and light-industrial swing gates. Available in V400 SMART and V500 SMART versions, the system combines high push force, battery backup, intelligent electronic control and advanced safety features.

The CENTSYS V-Series SMART uses a 12V DC battery-driven system and provides up to 250 kgf maximum push force. With up to 250 operations per day and a 50% duty cycle, it provides reliable automatic gate operation for demanding swing gate applications.

The SMART control system also incorporates a 433 MHz code-hopping multichannel receiver capable of storing up to 1,500 transmitters, making the system suitable for both private properties and shared-access installations.

Key Features

• Original CENTURION Systems / CENTSYS swing gate operator
• V-Series SMART linear gate automation
• Available as V400 SMART and V500 SMART
• 12V DC motor
• Battery-driven operation
• Battery backup during mains power failure
• Up to 250 kgf maximum push force
• Up to 250 operations per day
• 50% duty cycle with mains power available
• 28 mm/sec variable piston speed
• Electronic collision sensing
• Optical position and trajectory control
• Smooth acceleration and deceleration
• 433 MHz code-hopping multichannel receiver
• Capacity for up to 1,500 transmitters
• Key-operated manual release
• Suitable for single and double swing gates
• Residential, commercial and light-industrial applications

Technical Specifications

CENTSYS V400 & V500 SMART Automatic Swing Gate Operators

The CENTURION V-Series SMART is available in V400 SMART and V500 SMART versions. Both models use powerful linear actuators designed to provide smooth, controlled and secure automatic operation of swing gates.

V400 SMART Swing Gate Motor

The V400 SMART features a 400 mm operator stroke and is designed for a wide range of residential and commercial swing gate installations.

With a full-stroke typical opening time of approximately 14.3 seconds, it combines fast operation with controlled acceleration and deceleration.

V500 SMART Swing Gate Motor

The V500 SMART features an extended 500 mm stroke, making it suitable for larger gates and installations requiring different mounting geometry.

Its typical full-stroke opening time is approximately 17.8 seconds.

Powerful 250 kgf Push Force

Both V400 SMART and V500 SMART provide up to 250 kgf maximum operator push force, providing powerful automatic movement for compatible swing gates.

Gate Leaves Up to 4 Metres

The V-Series SMART can be used on swing gate leaves up to approximately 4 metres, subject to the selected operator, gate weight, opening angle, wind loading and installation geometry.

Gate weight capacity must not be specified using one fixed figure because the permitted weight changes according to gate-leaf length and opening angle.

12V Battery Backup

The CENTURION VANTAGE SMART uses a 12V DC battery-driven system. Battery backup allows the automatic swing gate to continue operating during mains electricity failures.

The standard system uses a 7.2Ah battery, with larger battery capacity possible where additional backup autonomy is required.

Up to 250 Operations Per Day

The V-Series SMART is designed for up to 250 operations per day under the manufacturer's specified operating conditions, making it suitable for residential as well as higher-use commercial gate applications.

Electronic Collision Detection

The SMART controller provides electronic collision sensing to monitor resistance during gate movement. Correct setup helps provide safe and controlled automatic operation.

Optical Position & Trajectory Control

Optical position and trajectory control allows the SMART controller to accurately monitor actuator movement, providing smooth acceleration, deceleration and precise gate positioning.

433 MHz Code-Hopping Receiver

The SMART controller incorporates a 433 MHz code-hopping multichannel receiver with capacity for up to 1,500 transmitters.

This large transmitter capacity makes the system suitable for private villas, residential compounds and commercial properties with multiple authorised users.

Manual Key Release

Each operator includes a manual key release, allowing the actuator to be disengaged when manual gate operation is required.

Single & Double Swing Gate Applications

The V-Series SMART can be configured for both single-leaf and double-leaf automatic swing gate installations. The correct operator, mounting geometry and control configuration should be selected according to the individual gate.

Residential, Commercial & Light-Industrial Applications

• Villa swing gates
• Residential driveway gates
• Double-leaf entrance gates
• Residential compounds
• Apartment entrances
• Commercial buildings
• Office entrances
• Warehouse entrance gates
• Light-industrial swing gates
• Vehicle access control gates

Professional Installation

Professional installation is recommended for CENTURION V-Series SMART operators. Gate-leaf length, gate weight, opening angle, pillar dimensions, wind loading and mounting geometry must be checked before selecting the V400 SMART or V500 SMART.

For longer gate leaves, additional equipment such as an electric gate lock may be required according to the manufacturer's installation specifications.

CENTURION VANTAGE SMART Swing Gate Motor Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies CENTURION VANTAGE SMART swing gate motors in UAE for residential, commercial and light-industrial swing gate automation.

Supply, professional installation, replacement and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
