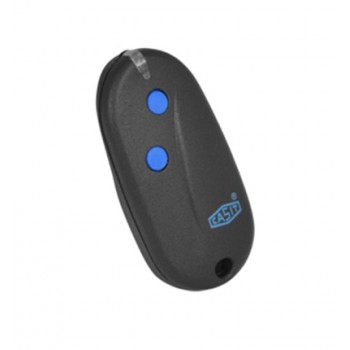

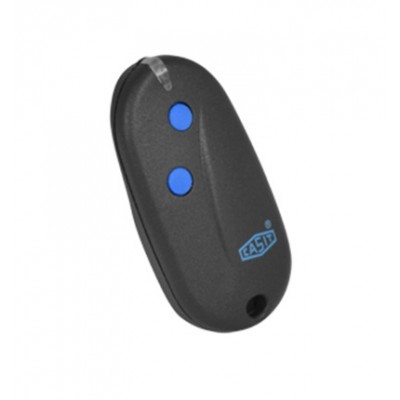

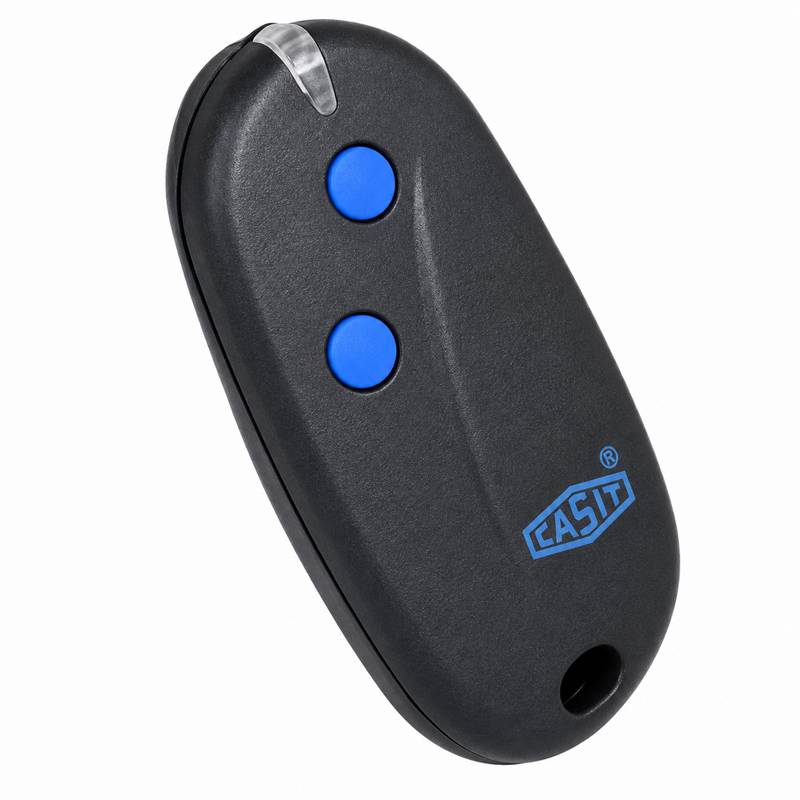

CASIT ERTS10DB Remote Control UAE
Price 150 AEDIn Stock
The CASIT ERTS10DB Remote Control is an S10 series gate transmitter designed for compatible CASIT automatic gate and access automation systems. It features 2 buttons / 2 channels and operates on a 433 MHz radio frequency.
The CASIT ERTS10DB uses traditional DIP-switch coding, allowing the transmitter code to be configured by matching the switch combination with a compatible receiver or existing transmitter.
Its compact design makes the ERTS10DB suitable as a replacement or additional remote control for compatible CASIT sliding gates, swing gates and other gate automation systems.
Key Features
- Original CASIT gate remote control
- Model ERTS10DB
- S10 transmitter series
- 2-button remote control
- 2-channel transmitter
- 433 MHz radio frequency
- DIP-switch coding
- Fixed-code transmitter system
- Simple code configuration
- 3V CR2032 lithium battery
- Wireless range up to 60 metres under suitable conditions
- Compact handheld design
- Suitable as a replacement or additional remote
- Designed for compatible CASIT gate automation systems
Technical Specifications
| Brand | CASIT |
| Model | ERTS10DB |
| Series | S10 |
| Product Type | Gate Remote Control / Radio Transmitter |
| Number of Buttons | 2 |
| Channels | 2 |
| Frequency | 433 MHz |
| Coding | DIP Switch / Fixed Code |
| Power Supply | 3V DC |
| Battery | CR2032 Lithium |
| Range | Up to 60 m |
| Dimensions | 33 × 69 × 13 mm |
| Application | Compatible CASIT Gate Automation Systems |
CASIT S10 2-Button 433 MHz DIP Switch Gate Remote
The CASIT ERTS10DB is an S10 series transmitter featuring two control buttons and two radio channels. It operates at 433 MHz and is designed for compatible CASIT radio receivers and automation control systems.
2-Button / 2-Channel Remote Control
The ERTS10DB provides two buttons and two channels. Depending on the receiver configuration, the two channels can be used for compatible gate or automation commands.
This can allow a single transmitter to operate more than one compatible automation function where the installed receiver supports it.
433 MHz Radio Frequency
The CASIT ERTS10DB operates on a 433 MHz radio frequency. The existing receiver frequency and coding system should always be checked before ordering a replacement remote control.
DIP Switch Fixed Code Technology
The CASIT ERTS10DB uses a DIP-switch coding system. Small switches inside the transmitter are used to configure the radio code.
For compatible systems, the DIP-switch positions must correspond with the code configuration required by the receiver.
Easy Remote Replacement
The DIP-switch design can make replacement straightforward when an existing compatible CASIT ERTS10DB transmitter is available. The switch pattern of the replacement transmitter can be configured to match the compatible existing radio system.
Always verify the frequency, receiver model and DIP-switch configuration before changing the transmitter settings.
CR2032 Lithium Battery
The CASIT ERTS10DB operates from a 3V CR2032 lithium battery, providing a compact power source for everyday wireless gate operation.
Up to 60 Metres Operating Range
The ERTS10DB has a stated radio range of up to 60 metres under suitable operating conditions. Actual range can vary depending on the receiver, antenna, surrounding buildings, electrical interference and installation conditions.
Compatible CASIT Control Units & Receiver
Technical listings identify the CASIT ERTS10DB for use with compatible control units including:
- CASIT KEQ011
- CASIT KEQ013
- CASIT EQLRS2102
- CASIT KEQ005A00
- CASIT ERS97-2224 receiver
Compatibility should always be confirmed against the installed receiver and control unit before purchasing a replacement transmitter.
Replacement CASIT Gate Remote
The CASIT ERTS10DB is suitable as a replacement for a lost or damaged compatible transmitter or as an additional remote for an existing CASIT gate automation installation.
Compatible Applications
- CASIT sliding gate motors
- CASIT swing gate motors
- Automatic entrance gates
- Residential villa gates
- Commercial automatic gates
- Parking entrance gates
- Compatible CASIT radio receivers
- Gate access automation systems
Check Compatibility Before Ordering
Before ordering the CASIT ERTS10DB remote control, check the model, operating frequency and coding system of your existing remote and receiver.
The ERTS10DB uses DIP-switch coding, so another 433 MHz remote is not automatically compatible unless the receiver supports the same transmitter and coding system.
CASIT ERTS10DB Remote Control Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies CASIT ERTS10DB remote controls in UAE for compatible CASIT automatic gate systems.
Remote supply, replacement and programming support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
