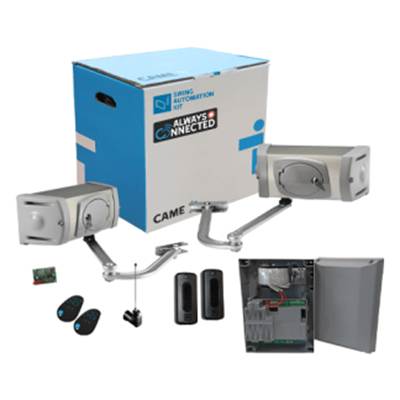

CAME FERNI FE40230 Articulated Arm Swing Gate Opener in UAE
CAME FERNI FE40230 Articulated Arm Swing Motor in UAE
- CAME FERNI - FE40230 - 001FE40230
- Irreversible 230 V gearmotor with hinged transmission arm
- and C Max. 380 mm for swing gates with up to 4 m leaves that weighs up to 400 kg.
Technical Data:
- Max. length of leaf (m) : 4
- Max. weight of leaf (kg) : 400
- Power supply (V – 50/60 Hz) : 230 AC
- Power (W) : 140
- Thrust (N) : 540
- Protection rating (IP) : 44
- Power supply to motor (V) : 230 AC 50/60 Hz
- Maneuvering time at 90° (s) : 34
- Operating temperature (°C) : -20 ÷ +55
- Absorption (A) : 1,2
- Duty/cycle (%) : 30
- Motor’s heat protection (°C) : 150
