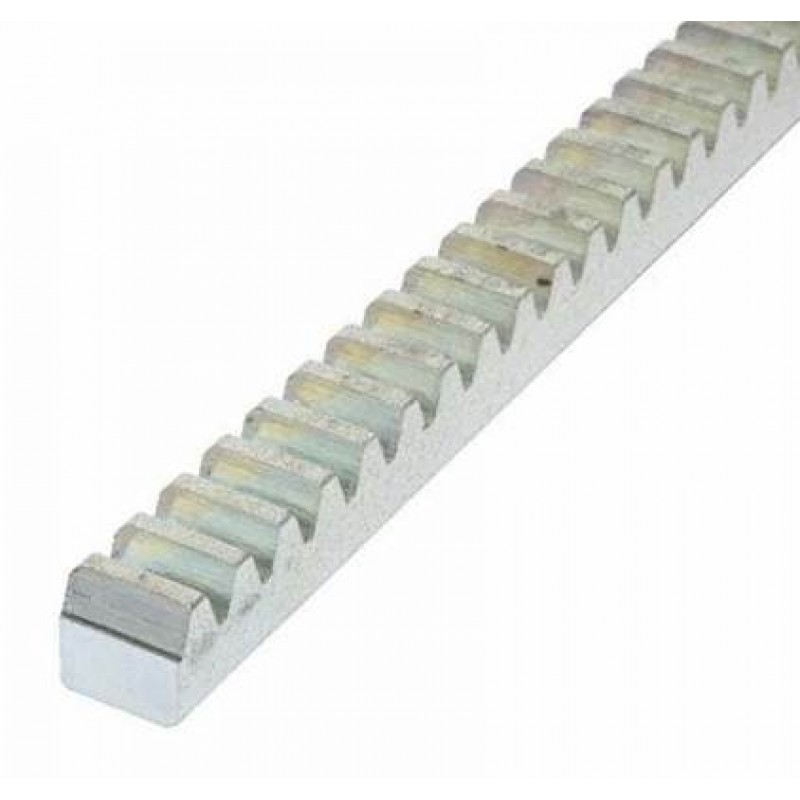

CAME 009CGZ6 Galvanized Steel Rack 30 × 30 mm UAE

The CAME 009CGZ6 Galvanized Steel Rack is an original CAME heavy-duty gear rack designed for compatible automatic sliding gate motors. The CAME CGZ6 features a Module 6 tooth profile and robust 30 × 30 mm laminated steel construction for demanding sliding gate automation applications.

The rack is manufactured from galvanized laminated steel to provide a strong mechanical transmission between the sliding gate motor pinion and the moving gate. Its heavy-duty construction makes it particularly suitable for large commercial and industrial automatic sliding gates.

The CAME CGZ6 / 009CGZ6 is officially listed by CAME as the Module 6 rack for compatible heavy-duty sliding gate operators, including the CAME BY-3500T.

Key Features

• Original CAME sliding gate gear rack
• Model CGZ6
• Product code 009CGZ6
• Module 6 gear rack
• 30 × 30 mm section
• Galvanized laminated steel construction
• Heavy-duty mechanical design
• Designed for automatic sliding gates
• Suitable for compatible CAME Module 6 gate motors
• Compatible with CAME BY-3500T
• Suitable for commercial applications
• Suitable for industrial gate automation
• Professional installation recommended

Technical Specifications

CAME CGZ6 Module 6 Heavy-Duty Steel Gear Rack for Sliding Gate Motors

The CAME 009CGZ6 is a heavy-duty Module 6 galvanized steel rack designed to transfer power from a compatible sliding gate motor to the moving gate.

The rack is installed horizontally along the sliding gate. When the gate motor operates, the Module 6 pinion engages with the rack teeth and moves the gate smoothly in the opening or closing direction.

30 × 30 mm Galvanized Laminated Steel

The CAME CGZ6 is manufactured from 30 × 30 mm galvanized laminated steel. Its robust construction makes it suitable for demanding automatic sliding gate installations.

Module 6 Gear Rack

Unlike standard Module 4 gate racks, the CAME 009CGZ6 uses a Module 6 tooth profile. It must therefore be used with a compatible Module 6 motor pinion.

The larger Module 6 tooth profile is designed for compatible heavy-duty CAME sliding gate automation systems.

Heavy-Duty Sliding Gate Rack

The 30 × 30 mm laminated steel construction provides a strong mechanical transmission solution for large automatic sliding gates used in demanding commercial and industrial applications.

CAME BY-3500T Compatible Rack

The CAME 009CGZ6 is the Module 6 galvanized steel rack specified for the CAME BY-3500T heavy-duty sliding gate automation system.

The BY-3500T is designed for sliding gates weighing up to 3,500 kg, making the CGZ6 particularly suitable for heavy commercial and industrial gate installations.

How the CAME Steel Rack Works

The steel rack is securely fixed along the moving gate leaf. The pinion gear on the sliding gate motor engages with the teeth of the rack.

As the motor pinion rotates, it drives the rack horizontally and moves the gate along its track. Correct rack and pinion alignment is essential for smooth and reliable gate operation.

Professional Rack Installation

The CAME CGZ6 should be professionally installed and correctly aligned with the Module 6 motor pinion. Proper clearance must be maintained between the pinion and rack teeth.

Incorrect alignment can cause excessive noise, vibration, premature rack or pinion wear and unnecessary load on the gate motor gearbox.

Commercial & Industrial Applications

• Heavy-duty automatic sliding gates
• Commercial property entrances
• Factory sliding gates
• Warehouse entrances
• Industrial facilities
• Logistics centres
• Large parking entrances
• Security gates
• Vehicle access control gates

CAME 009CGZ6 Galvanized Steel Rack Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies CAME 009CGZ6 galvanized steel racks in UAE for compatible heavy-duty CAME automatic sliding gate motors.

Supply, replacement and professional installation are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
