CAME G4000 Parking Gate Barrier UAE
Price 0 AEDIn Stock

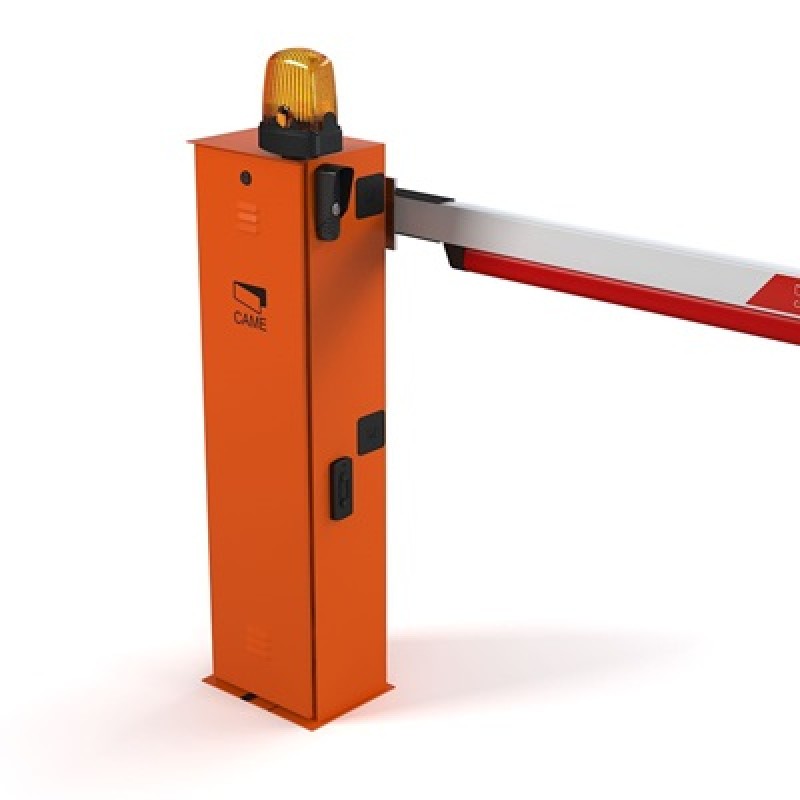

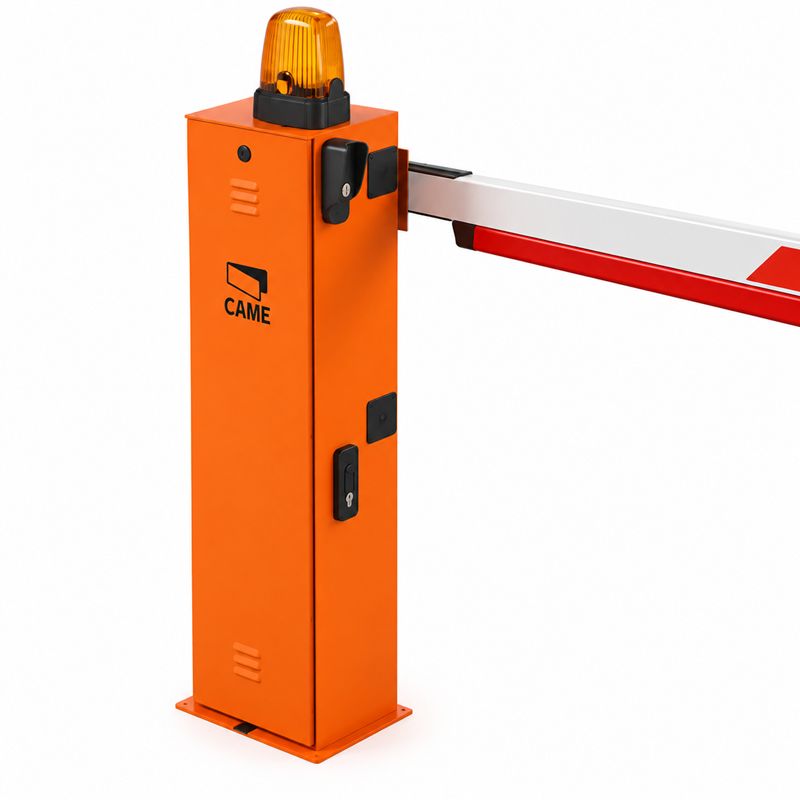

The CAME G4000 Parking Gate Barrier is a professional automatic boom barrier designed for vehicle access control at entrances with passage widths up to 4 metres. Part of the CAME GARD series, the G4000 is suitable for residential, commercial and industrial parking applications.
The CAME 001G4000 operates from a 230V AC mains supply and uses a 24V DC gearmotor designed for heavy-duty operation. With 300W power, 200Nm torque and an adjustable opening time of approximately 3 to 6 seconds, it provides reliable vehicle access management.
The barrier cabinet is manufactured from galvanized and painted steel and is designed to accommodate compatible CAME accessories. Its integrated control system allows safety devices, remote controls and access-control equipment to be incorporated according to the requirements of the installation.
With IP54 protection and an operating temperature range from -20°C to +55°C, the CAME G4000 is a reliable solution for parking areas, residential buildings, offices, warehouses and controlled vehicle entrances.
Key Features
- Original CAME automatic parking barrier
- CAME GARD Series
- Model G4000
- Product code 001G4000
- Suitable for passage widths up to 4 metres
- 230V AC mains power supply
- 24V DC gearmotor
- 300W motor power
- 200Nm torque
- Adjustable 3–6 second opening time
- Designed for heavy-duty service
- Built-in electronic control panel
- Galvanized and painted steel cabinet
- Compatible with photocell safety sensors
- Compatible with loop detectors
- Compatible with remote controls and receivers
- Suitable for access control integration
- Manual release for emergency operation
- IP54 protection rating
- Suitable for residential, commercial and industrial entrances
Technical Specifications
| Brand | CAME |
| Series | GARD |
| Model | G4000 |
| Product Code / SKU | 001G4000 |
| Product Type | Automatic Parking Gate Barrier |
| Maximum Passage Width | Up to 4 m |
| Main Power Supply | 230V AC, 50/60Hz |
| Motor Power Supply | 24V DC |
| Power | 300W |
| Torque | 200Nm |
| Opening Time at 90° | 3–6 Seconds |
| Duty | Heavy-Duty Service |
| Protection Rating | IP54 |
| Operating Temperature | -20°C to +55°C |
| Cabinet Material | Galvanized & Painted Steel |
CAME 001G4000 24V Automatic Boom Barrier for Entrances up to 4 Metres
The CAME G4000 is designed for controlling vehicle entrances with a maximum passage width of approximately 4 metres. It provides an effective solution for managing vehicle access at residential buildings, parking areas, commercial properties and industrial facilities.
24V DC Heavy-Duty Gearmotor
The CAME G4000 uses a 24V DC gearmotor designed for heavy-duty operation. The low-voltage motor provides reliable automatic opening and closing for locations requiring frequent vehicle access.
The barrier receives a 230V AC mains supply, while the internal gearmotor operates at 24V DC.
Fast 3–6 Second Opening
The CAME G4000 provides an adjustable opening time of approximately 3 to 6 seconds at 90°. This allows the barrier operating speed to be configured according to the boom configuration and installation requirements.
300W Motor with 200Nm Torque
The G4000 is equipped with a 300W motor delivering 200Nm of torque, providing dependable boom movement for professional vehicle access control applications.
Built-In Electronic Control Panel
The CAME G4000 incorporates an electronic control panel inside the barrier cabinet. The control system manages opening and closing operations and allows compatible command and safety accessories to be connected.
Photocell Safety Sensor Compatible
Compatible CAME photocell safety sensors can be installed with the G4000 to detect vehicles or obstacles within the controlled entrance.
Correct safety-device configuration is important to help prevent the barrier boom from closing while a vehicle is within the protected detection area.
Loop Detector Integration
The CAME G4000 can be integrated with a compatible vehicle loop detector system. An induction loop installed in the road can be used as part of the vehicle detection and access-control system.
Loop detectors are particularly useful for parking entrances, exits, warehouses and commercial vehicle access points.
Remote Control Operation
Compatible CAME radio receivers and remote controls can be integrated with the G4000, allowing authorized users or security personnel to operate the parking barrier remotely.
Access Control Integration
The CAME G4000 can form part of a complete vehicle access control system and can be integrated with compatible access-control equipment according to project requirements.
Typical systems can include card readers, RFID systems, long-range vehicle readers, push buttons, intercom systems and other authorized-entry devices.
Galvanized & Painted Steel Cabinet
The CAME G4000 cabinet is manufactured from galvanized and painted steel and is designed to accommodate the internal motor, control electronics and compatible accessories.
IP54 Protection
The CAME G4000 has an IP54 protection rating and an operating temperature range from -20°C to +55°C.
Manual Release During Power Failure
The barrier incorporates a manual release system for situations where manual boom operation is required, such as during a power failure or maintenance.
Applications
- Residential parking entrances
- Apartment buildings
- Residential compounds
- Office parking areas
- Commercial buildings
- Shopping centres
- Hotels
- Hospitals
- Schools and universities
- Factories and warehouses
- Industrial facilities
- Vehicle access control entrances
CAME G4000 Parking Gate Barrier Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies CAME G4000 parking gate barriers in UAE together with boom arms, remote controls, photocell sensors, loop detectors, push buttons, access-control equipment and genuine CAME spare parts.
Supply, installation, programming, repair and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
