CAME DIR10 Photocell Sensor UAE
Price 300 AEDIn Stock

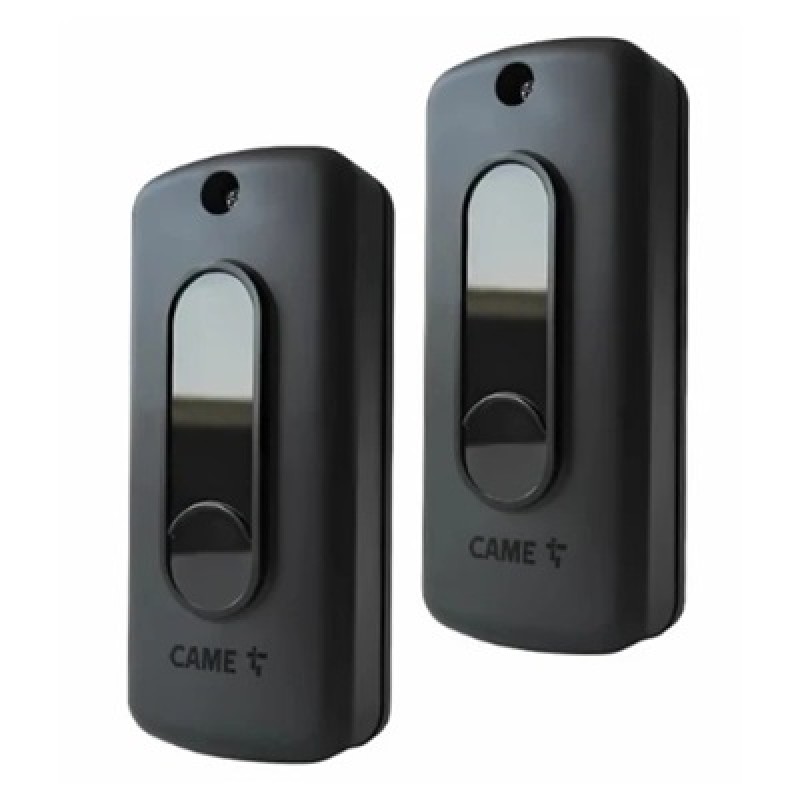

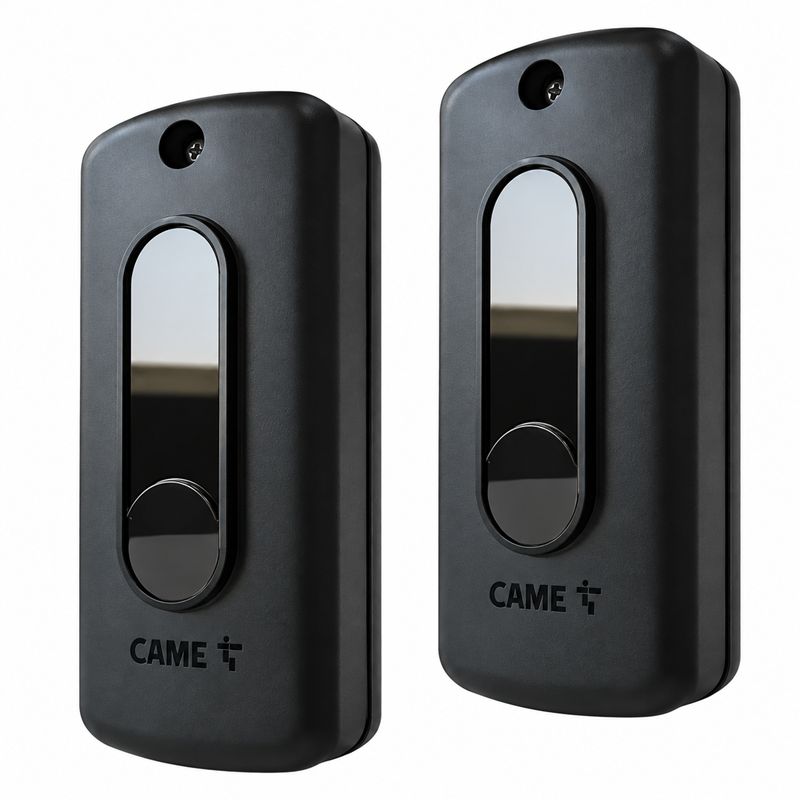

The CAME DIR10 Photocell Sensor is a professional infrared safety device designed for automatic gates, parking barriers and other compatible automation systems. Supplied as a pair, the CAME 001DIR10 provides an infrared detection range of up to 10 metres.
The DIR10 photocells use a synchronized infrared beam to monitor the gate movement area and help detect vehicles, people and other obstacles. When the infrared beam is interrupted, the photocells send a signal to the compatible gate control system so that the programmed safety function can be activated.
Operating from a 12–24V AC/DC power supply, the CAME DIR10 is suitable for a wide range of professional gate automation installations. The photocells feature an IP54 protection rating and durable ABS/polycarbonate construction for outdoor installation.
Key Features
- Original CAME photocell safety sensors
- CAME DIR Series
- Model DIR10
- Product code 001DIR10
- Supplied as a pair of photocells
- Maximum infrared range up to 10 metres
- 12–24V AC/DC power supply
- Synchronized infrared beam technology
- Designed for automatic gate safety
- Surface-mounted installation
- IP54 protection rating
- ABS and polycarbonate construction
- Operating temperature -20°C to +55°C
- Suitable for indoor and outdoor automation applications
- Compatible with suitable CAME gate automation systems
Technical Specifications
| Brand | CAME |
| Series | DIR |
| Model | DIR10 |
| Product Code / SKU | 001DIR10 |
| Product Type | Infrared Safety Photocells |
| Quantity | 1 Pair |
| Maximum Range | 10 m |
| Power Supply | 12–24V AC/DC |
| Current Consumption at 24V | 60 mA |
| Relay Contact Rating at 24V | 0.5A |
| Installation | Surface Mount |
| Protection Rating | IP54 |
| Operating Temperature | -20°C to +55°C |
| Material | ABS + Polycarbonate |
| Dimensions | 46 × 108 × 23 mm |
CAME 001DIR10 10M Infrared Safety Photocells for Automatic Gates
The CAME DIR10 consists of a transmitter and receiver that create an infrared beam across the automatic gate entrance. The maximum operating range is 10 metres.
When a vehicle, person or other obstacle interrupts the infrared beam, the connected automation control panel receives the photocell safety signal and responds according to its programmed safety settings.
Synchronized Infrared Beam Technology
The CAME DIR series uses a synchronized infrared beam designed to help prevent interference from external signals and provide dependable detection in automatic gate applications.
10 Metre Detection Range
The CAME DIR10 provides an infrared operating range of up to 10 metres, making it suitable for residential driveways, commercial entrances, parking barriers and many standard automatic gate installations.
12–24V AC/DC Power Supply
The DIR10 operates from a 12–24V AC or DC power supply, providing flexible integration with compatible CAME gate automation control systems.
IP54 Outdoor Protection
The CAME DIR10 has an IP54 protection rating. Its ABS and polycarbonate enclosure provides a durable housing for professional gate automation installations.
Compact Surface-Mount Design
With dimensions of approximately 46 × 108 × 23 mm, the DIR10 has a compact surface-mounted design suitable for installation on gate posts, walls and compatible photocell mounting accessories.
Automatic Sliding Gate Safety
The CAME DIR10 can be used with compatible automatic sliding gate systems to monitor the vehicle passage area and provide a safety input to the gate control panel.
Swing Gate Safety Photocells
For compatible swing gate automation systems, the DIR10 can be positioned across the entrance to detect obstacles and provide the appropriate safety command to the control system.
Parking Gate Barrier Safety Sensor
The CAME DIR10 is also suitable for compatible automatic parking barriers. The photocell beam can monitor the vehicle passage area and help prevent unwanted boom movement when an obstacle is detected.
Compatible CAME DIR Accessories
- 001DIRZ – Aluminum alloy shock-proof protection
- 001DIR-S – Recess-mounting casing
- 001DIR-L – Natural-finish aluminum post, 500 mm
- 001DIR-LN – Black anodized aluminum post, 500 mm
Applications
- Automatic sliding gates
- Automatic swing gates
- Parking gate barriers
- Garage door automation
- Residential villa entrances
- Apartment buildings
- Commercial properties
- Factories and warehouses
- Parking entrances and exits
- Vehicle access control systems
CAME DIR10 Photocell Sensor Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies CAME DIR10 photocell sensors in UAE for automatic sliding gates, swing gates, parking barriers and compatible gate automation systems.
Supply, installation, replacement, alignment, testing and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
