CAME 009CGZP Sliding Gate Motor Nylon Rack UAE

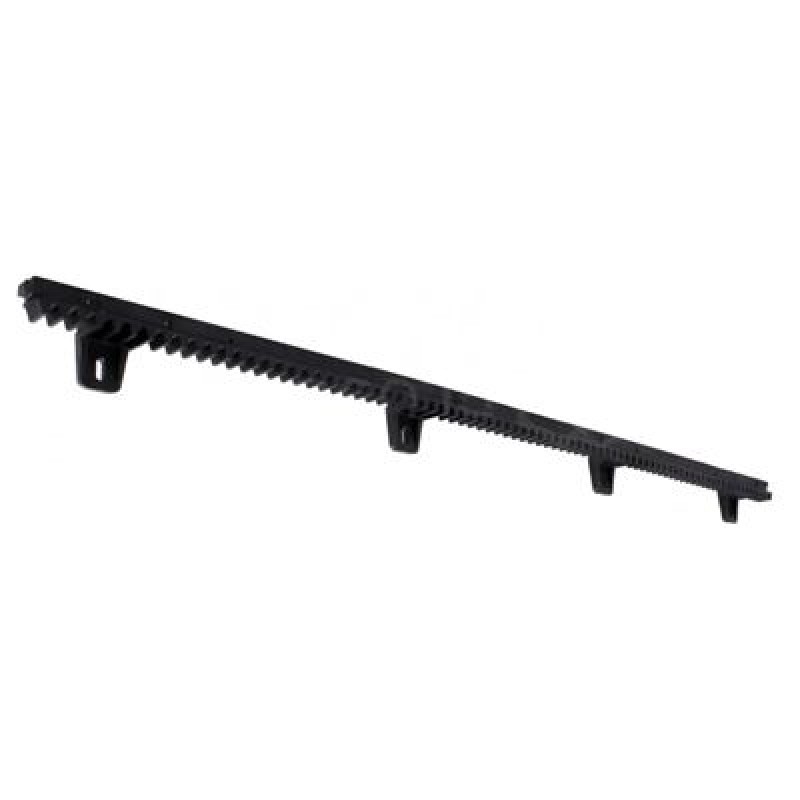

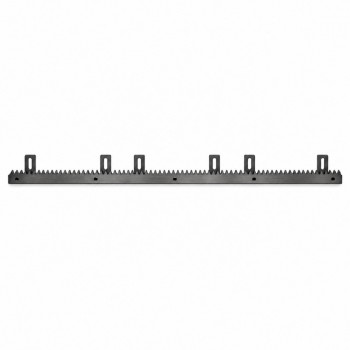

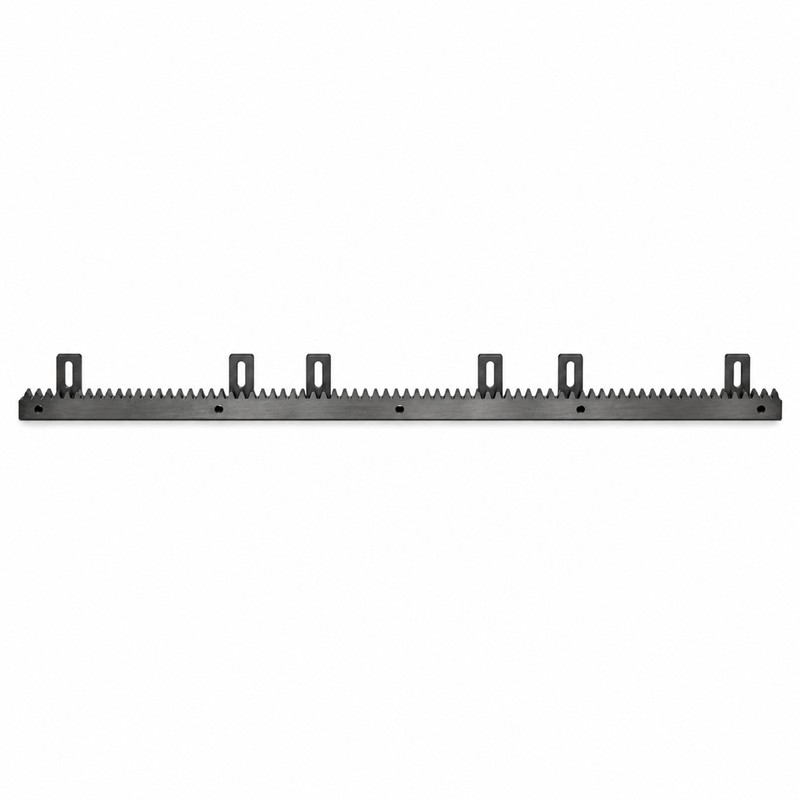

The CAME 009CGZP Nylon Rack is an original CAME Module 4 gear rack designed for compatible automatic sliding gate motors. The CAME CGZP is manufactured from PA6 nylon with steel-core fiberglass reinforcement and features a 10 × 10 mm section.

Designed for sliding gates weighing up to 600 kg, the CGZP provides a reliable mechanical connection between the sliding gate motor pinion and the moving gate. It is supplied with a fastening brace for professional installation.

The CAME 009CGZP is suitable for compatible CAME sliding gate automation systems and provides a lightweight alternative to galvanized steel gear racks for suitable residential and commercial gate applications.

Key Features

• Original CAME sliding gate motor rack
• Model CGZP
• Product code 009CGZP
• Module 4 gear rack
• 10 × 10 mm section
• PA6 nylon construction
• Steel-core fiberglass reinforcement
• Suitable for sliding gates up to 600 kg
• Supplied with fastening brace
• Designed for compatible CAME sliding gate motors
• Suitable for residential and commercial sliding gates
• Professional installation recommended

Technical Specifications

CAME CGZP Module 4 Nylon Gear Rack for Sliding Gates Up to 600 KG

The CAME 009CGZP is a Module 4 nylon gear rack specifically designed for compatible automatic sliding gate operators.

The rack is fixed horizontally along the moving gate leaf. When the sliding gate motor operates, its pinion engages with the rack teeth and moves the gate in the opening or closing direction.

PA6 Nylon & Steel-Core Fiberglass Construction

The CAME CGZP is manufactured from PA6 nylon with steel-core fiberglass reinforcement. This construction combines a lightweight rack body with internal reinforcement for reliable sliding gate operation.

10 × 10 mm Module 4 Rack

The CAME 009CGZP features a 10 × 10 mm section and Module 4 tooth profile. It is designed to engage with compatible Module 4 sliding gate motor pinions.

Suitable for Sliding Gates Up to 600 KG

CAME specifies the CGZP nylon rack for sliding gates weighing up to 600 kg, making it suitable for many residential and light commercial automatic sliding gate installations.

Fastening Brace

The CAME 009CGZP is supplied with a fastening brace to assist with secure installation of the rack along the sliding gate.

Advantages of a Nylon Sliding Gate Rack

A reinforced nylon gear rack provides a lightweight transmission solution for compatible sliding gate systems. When correctly installed and aligned, it provides smooth engagement between the rack teeth and motor pinion.

For gates exceeding the manufacturer's specified 600 kg limit, a suitable CAME steel rack should be selected instead.

Compatible CAME Sliding Gate Motors

The CAME 009CGZP is listed as a rack option across several compatible CAME sliding gate automation ranges, including:

• CAME BX sliding gate operators
• CAME BXL sliding gate operators
• CAME BXV sliding gate operators
• CAME BXV Plus sliding gate operators
• Other compatible CAME Module 4 sliding gate systems

Professional Rack Installation

Correct alignment of the CAME CGZP rack with the gate motor pinion is important for smooth and reliable operation. The rack sections should be installed in a straight line and correctly joined to maintain consistent tooth spacing.

The rack should not place the full weight of the gate onto the motor pinion. Correct rack-to-pinion clearance should be maintained during installation.

Residential & Commercial Applications

• Villa sliding gates
• Residential automatic gates
• Apartment building entrances
• Light commercial sliding gates
• Parking entrances and exits
• Vehicle access control gates

CAME 009CGZP Nylon Rack Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies CAME 009CGZP nylon racks in UAE for compatible CAME automatic sliding gate motors.

Supply, replacement and professional installation are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
