CAME AF43S Radio Receiver Board UAE
Price 250 AEDIn Stock

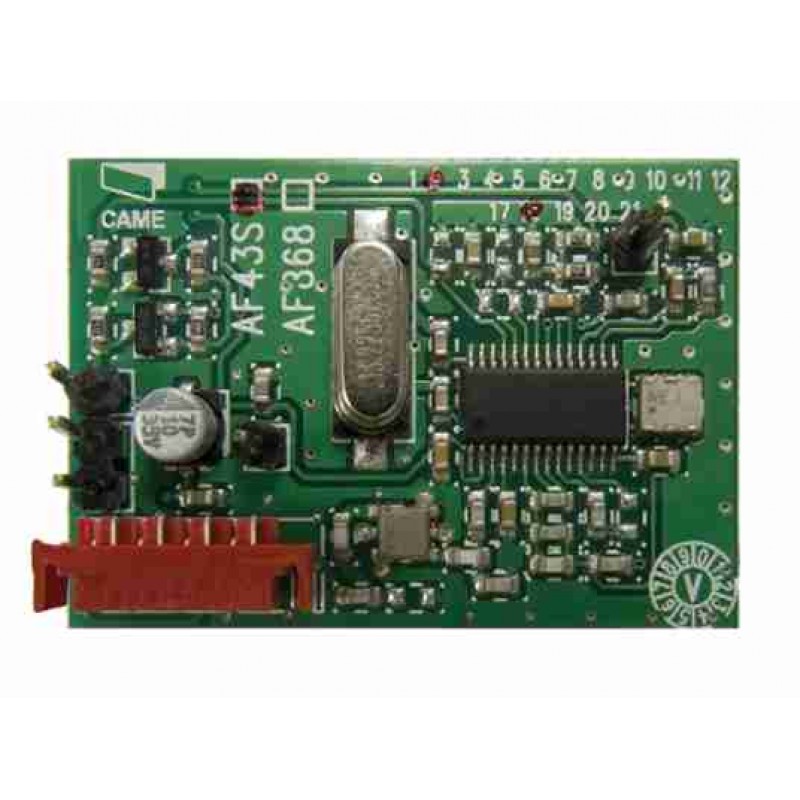

The CAME AF43S Radio Receiver Board is an original plug-in radio-frequency card designed for compatible CAME automatic gate, garage door and parking barrier control boards. The CAME 001AF43S operates at 433.92 MHz and enables compatible CAME control systems to receive commands from supported radio transmitters.
The AF43S plugs directly into the dedicated radio-frequency card connector on compatible CAME electronic control boards. Once correctly installed and programmed, it allows compatible remote controls to operate the connected automatic gate or access automation system.
The CAME AF43S is widely used with compatible CAME automation systems requiring a 433.92 MHz plug-in receiver card.
Key Features
- Original CAME radio receiver card
- Model AF43S
- Product code 001AF43S
- 433.92 MHz radio frequency
- AM radio receiver technology
- Plug-in receiver card design
- Installs directly onto compatible CAME control boards
- Designed for compatible CAME radio transmitters
- 5.5 mA current consumption
- Operating temperature from -20°C to +55°C
- Suitable for automatic gate automation
- Suitable for professional replacement and repair
Technical Specifications
| Brand | CAME |
| Model | AF43S |
| Product Code / SKU | 001AF43S |
| Product Type | Plug-In Radio Frequency Receiver Card |
| Radio Frequency | 433.92 MHz |
| Modulation | AM |
| Current Consumption | 5.5 mA |
| Operating Temperature | -20°C to +55°C |
| Sensitivity | 107 dBm |
| Installation | Plug-In / Snap-In |
| Application | Compatible CAME Automation Control Boards |

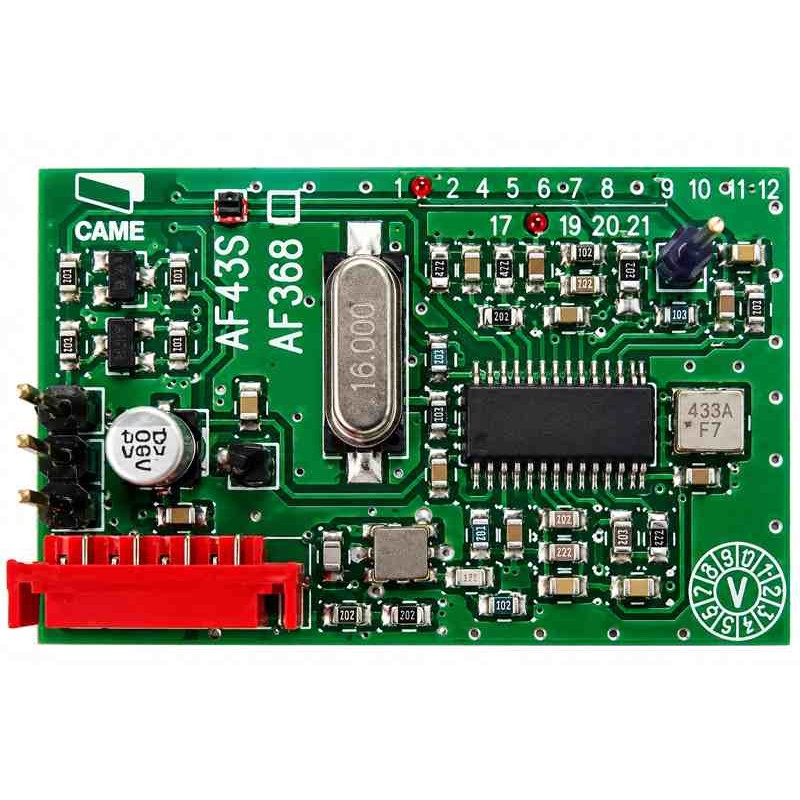

CAME 001AF43S 433.92 MHz Plug-In Radio Frequency Receiver Card
The CAME AF43S is a plug-in radio receiver card operating at 433.92 MHz. It provides the radio interface required for compatible CAME automation control boards to receive commands from supported remote controls.
433.92 MHz Radio Receiver
The CAME AF43S operates on the 433.92 MHz radio frequency, one of the commonly used frequencies in CAME automatic gate radio-control systems.
Before ordering a replacement receiver card, the frequency and transmitter technology of the existing CAME automation system should be checked.
Plug-In Receiver Card
The AF43S has a compact plug-in card design and is inserted into the dedicated AF radio-frequency connector on compatible CAME electronic control boards.
This eliminates the need for a separate external radio receiver when the control panel already provides a compatible AF card connection.
CAME TOP & TAM Remote Compatibility
The CAME AF43S has traditionally been used with compatible CAME TOP and TAM 433.92 MHz radio transmitters.
Remote-control compatibility should always be checked according to the transmitter model, coding system and CAME control-board configuration.
Replacement CAME Receiver Board
The CAME 001AF43S is suitable for replacing a damaged or faulty compatible radio-frequency card in an existing CAME automation system.
If the gate operates correctly from the wired push button but does not respond to compatible remote controls, the radio receiver card, transmitter programming, antenna and control-board configuration should be checked by a technician.
CAME Gate Motor Receiver Card
The AF43S can be installed in compatible CAME control boards used with automatic sliding gates, swing gates, garage doors, parking barriers and other supported automation systems.
AF43S Installation
The CAME AF43S should only be inserted into a compatible control board with the main electrical power disconnected.
After installation, the control board must be powered again so that the electronic system can correctly recognize the radio-frequency card. Remote controls can then be programmed according to the procedure specified for the installed CAME control board.
Compatible Applications
- CAME sliding gate motors
- CAME swing gate motors
- CAME parking gate barriers
- CAME garage door automation
- Compatible CAME electronic control boards
- Residential automatic gates
- Commercial gate automation
- Industrial gate automation
- Vehicle access control systems
Check Compatibility Before Ordering
Before ordering the CAME AF43S 001AF43S, check the model of the existing control board and radio transmitter.
A remote control operating at 433.92 MHz is not automatically compatible with every 433.92 MHz receiver. The transmitter family, coding technology and control-board compatibility must also be verified.
CAME AF43S Radio Receiver Board Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies CAME AF43S radio receiver boards in UAE for compatible CAME automatic gate, garage door and parking barrier systems.
Supply, replacement, remote programming and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
