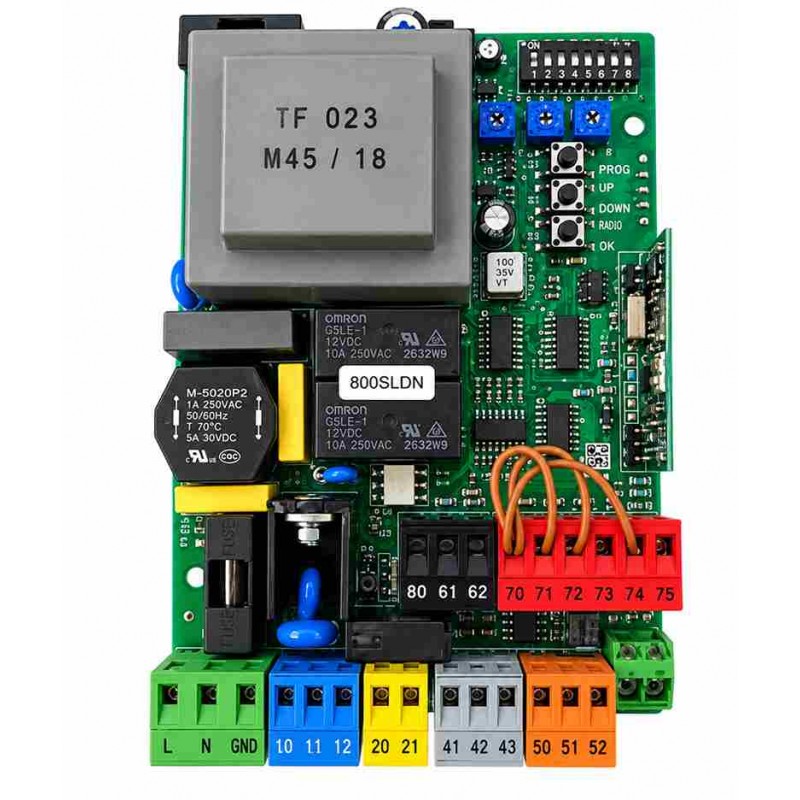

BFT SHYRA F 800SLDN Control Board for DEIMOS AC A800
Price 850 AEDIn Stock
The BFT SHYRA F 800SLDN Control Board is an electronic control panel designed specifically for the BFT DEIMOS AC A800 sliding gate motor. Reference I700081 10001 and part number 2610736, the board manages motor operation, remote controls, safety devices and automatic gate functions.
The SHYRA F 800SLDN operates from a 230V single-phase power supply and controls one 230V single-phase sliding gate motor with a maximum operator power of 500W.
The control board features an integrated dual-channel radio receiver, potentiometer-controlled settings, LED fault diagnostics, removable terminal blocks and two verified safety inputs, including a dedicated 8K2 safety edge input.
The BFT SHYRA F 800SLDN is ideal for replacement, repair and maintenance of compatible BFT DEIMOS AC A800 automatic sliding gate systems.
Key Features
- BFT SHYRA F 800SLDN electronic control board
- Reference I700081 10001
- Part number 2610736
- Designed for BFT DEIMOS AC A800
- 230V single-phase control panel
- 230V single-phase motor output
- Maximum operator power 500W
- Built-in dual-channel radio receiver
- Potentiometer-controlled settings
- LED-based fault diagnostics
- Removable terminal blocks
- Pedestrian opening by radio control
- Quick lock function
- Pulse lock function
- Two verified safety inputs
- Dedicated 8K2 safety edge input
Technical Specifications
| Brand | BFT |
| Model | SHYRA F 800SLDN |
| Reference | I700081 10001 |
| Part Number | 2610736 |
| Product Type | Sliding Gate Motor Control Board |
| Compatible Motor | BFT DEIMOS AC A800 / 800 KG |
| Panel Power Supply | 230V Single-Phase |
| Operator Power Supply | 230V Single-Phase |
| Maximum Operator Power | 500W |
| Radio Receiver | Built-In Dual Channel |
| Settings | Potentiometers |
| Diagnostics | LED-Based Fault Reporting |
| Safety Inputs | 2 Verified Inputs |
| Safety Edge Input | 8K2 |
BFT SHYRA F 800SLDN for DEIMOS AC A800
The BFT SHYRA F 800SLDN is designed for the BFT DEIMOS AC A800 automatic sliding gate operator. It provides centralized electronic control of the motor, radio commands and connected safety accessories.
Before replacing an existing board, always confirm the gate motor model and the control board reference number to ensure correct compatibility.
230V Sliding Gate Motor Control Board
The SHYRA F 800SLDN operates from a 230V single-phase power supply and controls a compatible 230V single-phase operator with maximum motor power up to 500W.
Built-In Dual-Channel Radio Receiver
The control panel incorporates a dual-channel radio receiver, allowing compatible BFT remote controls to be programmed into the automatic gate system.
The integrated receiver eliminates the need for a separate external radio receiver in compatible installations.
Potentiometer Settings
Important operating settings on the BFT SHYRA F 800SLDN are controlled using integrated potentiometers, providing straightforward adjustment during installation, commissioning and maintenance.
LED Fault Diagnostics
The control board provides LED-based fault reporting to assist technicians during installation and troubleshooting. The indicators help identify control and safety input conditions when diagnosing the automatic gate system.
Pedestrian Opening by Remote Control
The SHYRA F 800SLDN supports pedestrian opening through radio control. This function allows partial gate access when configured correctly with a compatible BFT remote control.
Quick Lock & Pulse Lock Functions
Additional control functions include quick lock and pulse lock, providing additional operating options for compatible BFT DEIMOS AC A800 sliding gate installations.
8K2 Safety Edge Input
The BFT SHYRA F 800SLDN provides two verified safety inputs, including one dedicated to an 8K2 resistive safety edge.
Compatible safety devices should be installed and configured according to the requirements of the automatic gate system.
Replacement Control Board for BFT DEIMOS AC 800 KG
The BFT SHYRA F 800SLDN I700081 10001 is suitable as a replacement electronic control board for compatible BFT DEIMOS AC 800 KG sliding gate motors.
Before replacing a faulty board, the motor, capacitor, power supply, limit switches, photocells, safety devices and field wiring should also be inspected to identify any external fault that may have caused the original board failure.
Applications
- BFT DEIMOS AC A800 sliding gate motors
- 800 KG automatic sliding gates
- Residential entrance gates
- Villa sliding gates
- Commercial sliding gates
- Industrial sliding gates
- Factories and warehouses
- Gate motor repair
- Control board replacement
- Automatic gate maintenance
BFT SHYRA F 800SLDN Control Board Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies BFT SHYRA F 800SLDN control boards in UAE together with BFT DEIMOS sliding gate motors, remote controls, photocell sensors, flashing lights, gate racks and replacement automation spare parts.
Supply, installation, programming and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
