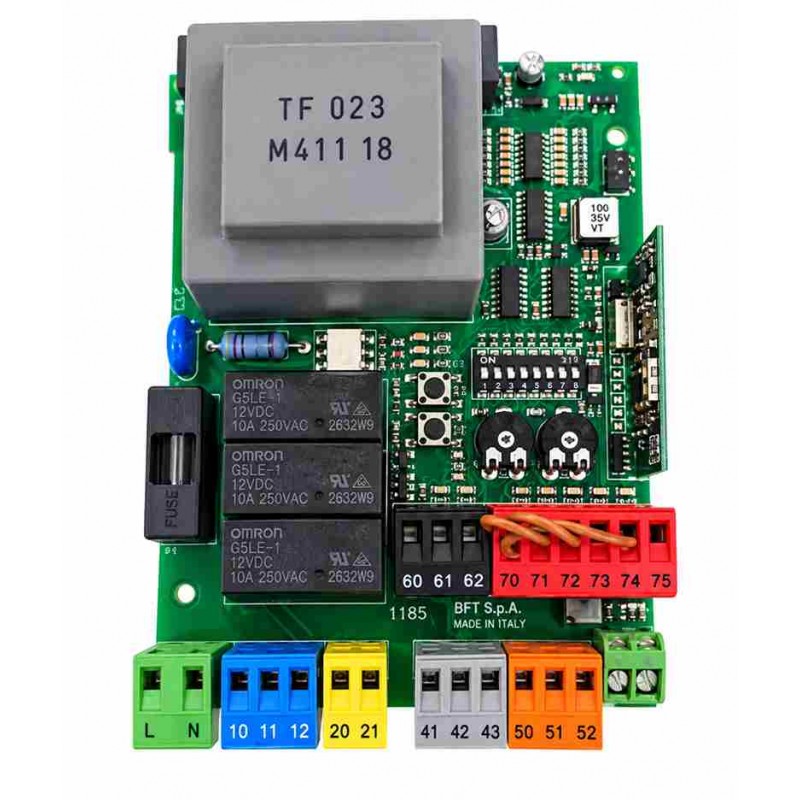

BFT SHYRA AC Control Board for DEIMOS AC Gate Motor
Price 700 AEDIn Stock
The BFT SHYRA AC Control Board is an electronic control panel designed for compatible BFT DEIMOS AC automatic sliding gate motors. It controls the gate motor, remote controls, safety devices and automatic operating functions from a single electronic board.
The SHYRA AC operates from a 230V single-phase power supply and is designed to control one 230V single-phase gate motor with a maximum operator power of 500W.
The control board features an integrated radio receiver, removable terminal blocks, potentiometer and DIP-switch settings, LED fault indication and dedicated safety inputs for reliable automatic gate operation.
The BFT SHYRA AC is suitable for replacement, repair and maintenance of compatible BFT DEIMOS AC sliding gate automation systems.
Key Features
- BFT SHYRA AC electronic control board
- Designed for compatible BFT DEIMOS AC sliding gate motors
- Controls one single-phase gate motor
- 230V single-phase power supply
- 230V single-phase operator output
- Maximum operator power up to 500W
- Built-in radio receiver
- Rolling code transmitter support
- Transmitter cloning support
- DIP-switch programming
- Potentiometer / trimmer adjustment
- LED-based fault indication
- Removable terminal blocks
- Separate safety device inputs
- 8K2 safety edge input
- Suitable for replacement and gate motor repair
Technical Specifications
| Brand | BFT |
| Model | SHYRA AC |
| Product Type | Sliding Gate Motor Control Board |
| Motor Type | Single-Phase AC |
| Number of Operators | 1 |
| Panel Power Supply | 230V Single-Phase |
| Operator Power Supply | 230V Single-Phase |
| Maximum Operator Power | 500W |
| Programming | DIP Switch & Potentiometers / Trimmers |
| Radio Receiver | Built-In |
| Radio Coding | Rolling Code |
| Diagnostics | LED Fault Indication |
| Safety Inputs | Separate Safety Device Inputs |
| Safety Edge | 8K2 Compatible Input |
| Application | Automatic Sliding Gates |
BFT SHYRA AC Control Board for DEIMOS AC Gate Motors
The BFT SHYRA AC is designed to control compatible BFT DEIMOS AC sliding gate automation systems. The board manages motor movement, radio commands and connected safety accessories.
Before replacing an existing control board, the exact gate motor model and existing SHYRA board version should be checked to ensure compatibility.
230V Single-Phase Gate Motor Control
The SHYRA AC operates from a 230V single-phase electrical supply and controls one 230V single-phase automatic gate motor with a maximum operator power of approximately 500W.
This makes the board suitable for compatible BFT AC sliding gate automation installations.
Built-In BFT Radio Receiver
The control board incorporates a BFT radio receiver for programming compatible BFT remote controls directly into the gate automation system.
The integrated receiver supports rolling code operation and compatible transmitter cloning functions.
DIP-Switch & Potentiometer Programming
The BFT SHYRA AC uses DIP switches and potentiometers / trimmers for configuration and adjustment. This provides straightforward access to important gate operating parameters during installation, commissioning and maintenance.
LED Fault Diagnostics
Integrated LED indicators assist technicians during installation and troubleshooting by providing visual information about the status of the control board, connected inputs and operating conditions.
Safety Device Inputs
The SHYRA AC provides dedicated inputs for compatible automatic gate safety devices. These can be used with equipment such as photocell sensors and compatible safety edges according to the required installation configuration.
A dedicated 8K2 safety edge input is provided for compatible resistive safety devices.
Replacement BFT DEIMOS AC Control Board
The BFT SHYRA AC Control Board is suitable for replacement and repair of compatible BFT DEIMOS AC automatic sliding gate motors when the existing electronic control panel is damaged or faulty.
Before installing a replacement board, the motor, capacitor, power supply, limit switches, photocells, safety accessories and field wiring should be inspected to identify any external fault that may have caused the original board failure.
Applications
- BFT DEIMOS AC sliding gate motors
- Automatic sliding gates
- Villa entrance gates
- Residential sliding gates
- Commercial entrance gates
- Apartment building entrances
- Factories and warehouses
- Automatic gate motor repair
- Control board replacement
- Gate automation maintenance
BFT SHYRA AC Control Board Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies BFT SHYRA AC control boards in UAE together with BFT DEIMOS sliding gate motors, remote controls, photocell sensors, flashing lights, gate racks and replacement gate automation spare parts.
Supply, installation, programming and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
