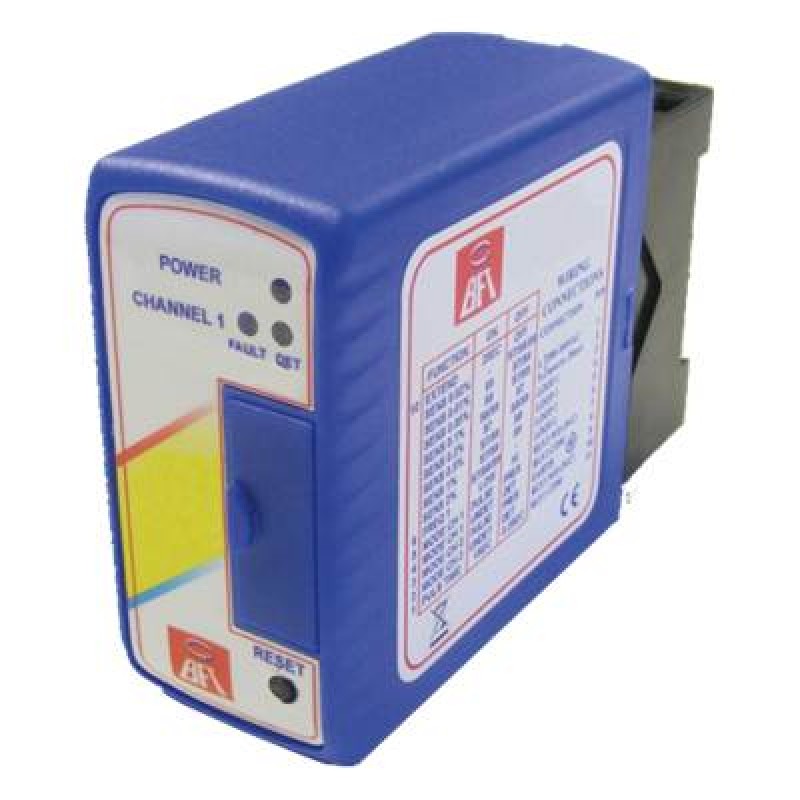

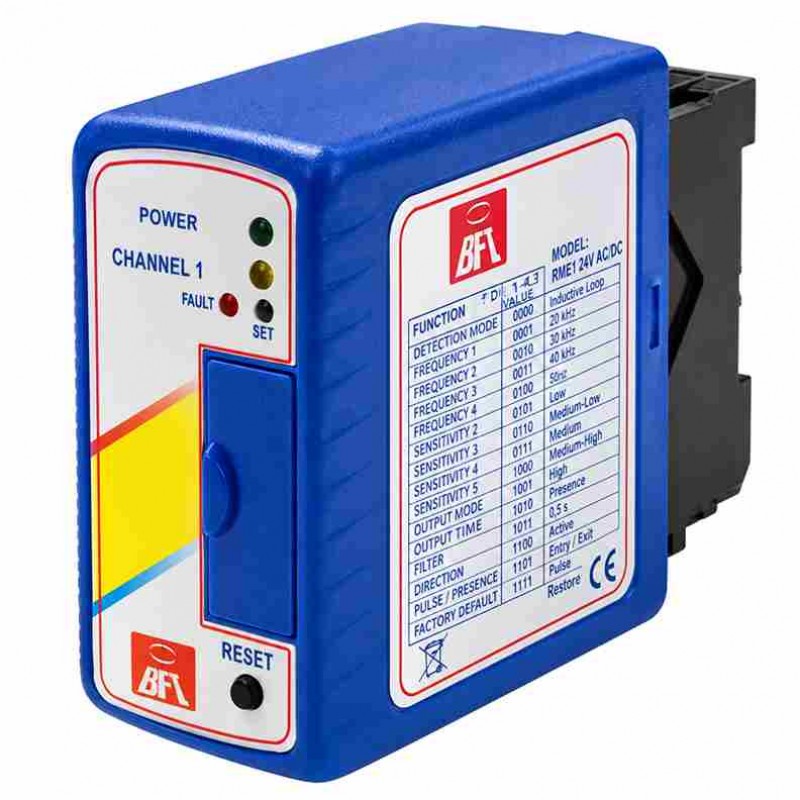

BFT RME 1 BT P111274 Vehicle Loop Detector UAE

The BFT RME 1 BT P111274 Loop Detector is a professional single-channel inductive vehicle detector designed for automatic gates, parking barriers and vehicle access control systems. It detects the presence or passage of metallic vehicles through an inductive loop installed beneath the road surface.

Operating from an 11–26V AC/DC power supply, the BFT RME 1 BT is suitable for integration with compatible low-voltage gate and parking barrier control systems. The detector provides adjustable sensitivity, selectable pulse and presence operating modes and LED indicators for power, vehicle detection and loop fault status.

The detector supports a wide loop tuning range of 15–1500 µH and provides a response approximately 120 milliseconds after a vehicle enters the detection loop. This makes it suitable for reliable vehicle detection at entrance and exit lanes.

The BFT RME 1 BT can be used for safety loops, opening loops, entry and exit detection and other vehicle-triggered automation functions depending on the connected control board and system configuration.

Key Features

• Original BFT vehicle loop detector
• Model RME 1 BT
• Product code P111274
• Single-channel inductive loop detector
• 11–26V AC/DC power supply
• Adjustable vehicle detection sensitivity
• 15–1500 µH detector tuning range
• Approximately 120 ms response time
• Pulse and presence operating modes
• Selectable high and low frequency
• Automatic sensitivity boost function
• LED power indicator
• LED vehicle detection indicator
• LED loop fault indication
• Loop isolation transformer
• Lightning protection
• 11-pin rear connector
• Suitable for automatic gates and parking barriers

Technical Specifications

BFT 24V Single-Channel Vehicle Loop Detector

The BFT RME 1 BT is a single-channel detector designed to monitor one inductive loop installed beneath the vehicle passage. When a metallic vehicle enters the loop area, the detector senses the resulting change in inductance and activates its output.

This output can be connected to a compatible automatic gate, parking barrier or access control system to perform the required vehicle detection function.

Adjustable Vehicle Detection Sensitivity

The BFT RME 1 BT provides 8 selectable sensitivity settings, allowing the detector to be adjusted according to the loop dimensions, installation conditions and required vehicle detection sensitivity.

The detector supports an inductive loop tuning range of 15 to 1500 µH, providing flexibility for different loop configurations.

Pulse & Presence Detection Modes

The RME 1 BT can be configured for different vehicle detection functions using its DIP switch settings. Depending on the installation requirements, the detector can provide pulse or permanent presence detection.

This allows the same detector to be configured for different parking and automatic gate applications.

Vehicle Detection for Automatic Gate Opening

When configured correctly, the BFT RME 1 BT can provide a vehicle detection signal to the automatic gate or parking barrier control system.

For example, an inductive loop can be installed at an exit lane so that a detected vehicle provides an opening command through the appropriate control circuit. The exact function depends on the control board wiring and RME 1 BT configuration.

Parking Barrier Safety Loop

The RME 1 BT can also be used as part of a parking barrier safety loop system. A loop positioned beneath or around the boom area can detect vehicle presence and provide the required signal to the compatible barrier controller.

The final safety behaviour depends on the parking barrier control board, wiring and programmed safety logic.

LED Status & Loop Fault Indication

Integrated LED indicators provide quick information about power status, vehicle detection and loop faults. These indicators are useful during installation, loop adjustment, commissioning and troubleshooting.

Applications

• Automatic sliding gates
• Automatic swing gates
• Parking gate barriers
• Vehicle exit loops
• Vehicle entry loops
• Safety loops
• Opening loops
• Parking entrances and exits
• Residential vehicle entrances
• Commercial parking areas
• Factories and warehouses
• Vehicle access control systems
