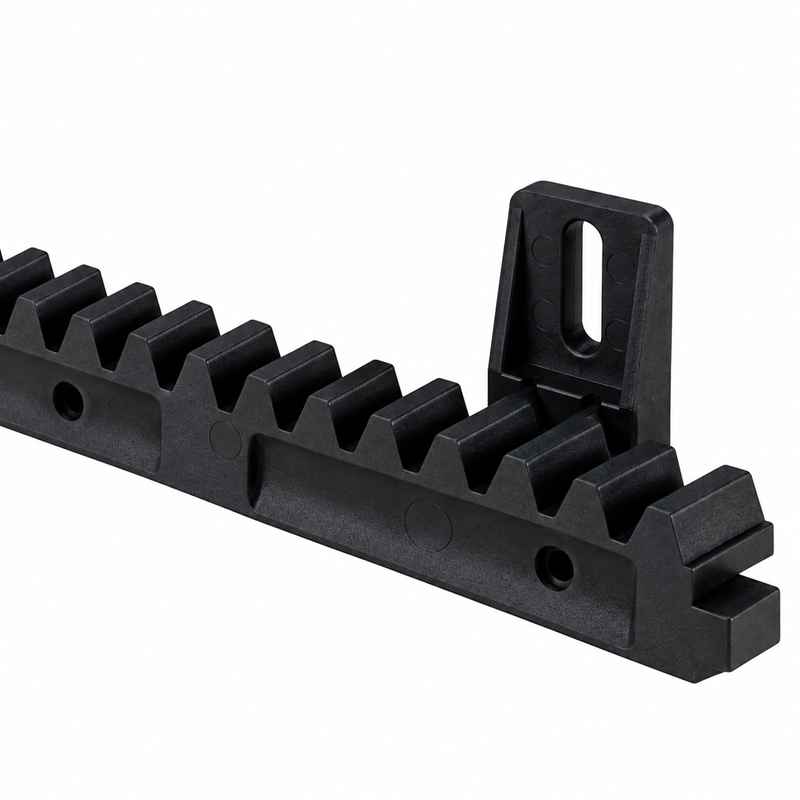

BFT CP D221073 Nylon Rack 1 Metre for Sliding Gate Motor

The BFT CP D221073 Nylon Rack is a 1 metre gear rack designed for compatible automatic sliding gate motors. Manufactured for smooth engagement with the gate motor pinion, the rack transfers motor movement to the sliding gate during automatic opening and closing.

The BFT CP rack features a Module 4 tooth profile, a cross-section of 22 × 22 mm and a total length of 1 metre. Its adjustable slotted mounting system allows accurate positioning and alignment during sliding gate motor installation.

Designed for gates weighing up to 600 kg, the BFT CP D221073 is suitable for residential and light commercial automatic sliding gate applications.

Key Features

• Original BFT sliding gate rack
• Model CP
• Product code D221073
• 1 metre rack length
• Module 4 gear profile
• 22 × 22 mm cross-section
• Heavy-duty plastic / nylon construction
• Maximum gate load up to 600 kg
• Adjustable slotted mounting system
• Screw-fitted installation
• Designed for automatic sliding gates
• Smooth engagement with gate motor pinion
• Suitable for residential and commercial gates
• Easy to extend using multiple 1 metre sections

Technical Specifications

BFT Module 4 Nylon Gear Rack for Sliding Gates up to 600 KG

The BFT CP D221073 uses a Module 4 gear profile designed to engage with compatible sliding gate motor pinions. Correct engagement between the motor pinion and rack allows the operator to transfer its rotational movement into linear gate movement.

The rack is specified for sliding gates weighing up to 600 kg, making it particularly suitable for residential villas and light commercial sliding gate automation systems.

1 Metre Sliding Gate Motor Rack

Each BFT CP D221073 rack section has a length of 1 metre. Multiple rack sections can be installed along the gate according to the total travel length required.

During installation, each section should be correctly aligned with the motor pinion to provide smooth movement across the complete gate travel.

Adjustable Slotted Installation

The BFT nylon rack features screw-fitted adjustable mounting slots. These slots allow the installer to adjust the rack position during installation for accurate alignment with the sliding gate motor pinion.

Correct rack alignment is important to prevent excessive pressure between the rack and pinion and to provide smooth automatic gate operation.

Smooth & Quiet Sliding Gate Operation

The nylon construction makes this rack suitable for applications where smooth and relatively quiet gate movement is required. It provides reliable power transmission between the automatic gate motor and sliding gate.

Replacement BFT Sliding Gate Rack

The BFT CP D221073 Nylon Rack can be used for new sliding gate motor installations or as a replacement for damaged or worn rack sections on compatible automatic gate systems.

When replacing an existing rack, the module, dimensions and motor pinion should be checked before installation to ensure correct compatibility.

Suitable BFT Sliding Gate Motors

The CP D221073 rack is suitable for compatible BFT sliding gate operators using a Module 4 pinion and within the specified gate weight range.

For example, the BFT DEIMOS BT A400 and DEIMOS BT A600 use Module 4 pinions and are designed for sliding gates up to 400 kg and 600 kg respectively.

Applications

• Automatic sliding gates
• BFT sliding gate motors
• Residential villa gates
• Home entrance gates
• Apartment building gates
• Light commercial sliding gates
• Sliding gate motor installation
• Sliding gate rack replacement
• Automatic gate repair and maintenance

BFT CP D221073 Nylon Rack Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies BFT CP D221073 nylon racks in UAE together with BFT sliding gate motors, steel racks, remote controls, photocell sensors, flashing lights, control boards and gate automation spare parts.

Supply and installation support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
