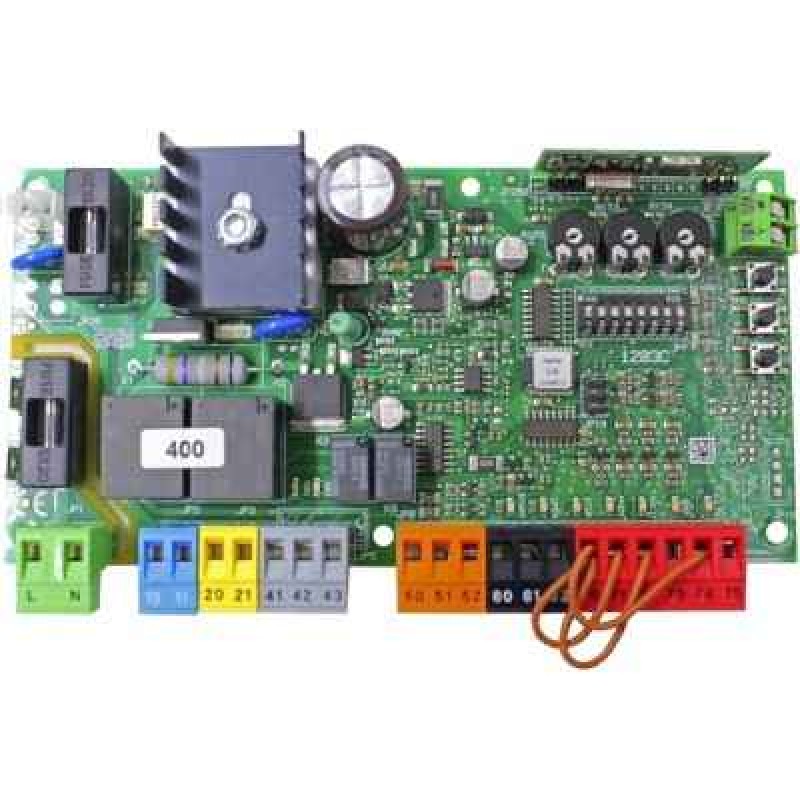

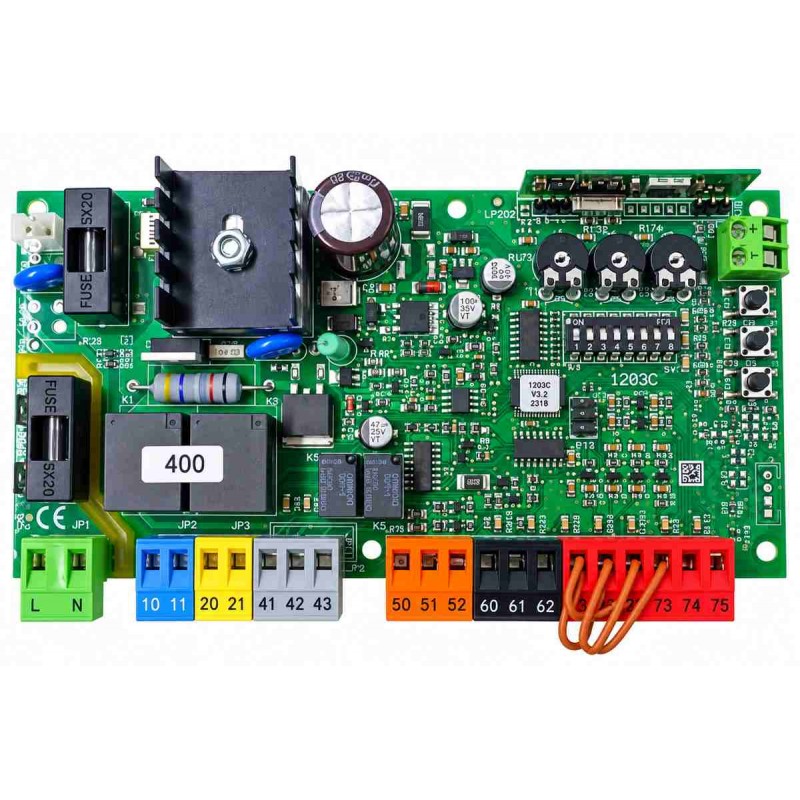

BFT HAMAL 400 Control Board for DEIMOS BT A400 UAE
Price 550 AEDIn Stock
The BFT HAMAL 400 Control Board is an original electronic control panel designed for the BFT DEIMOS BT A400 sliding gate motor. Reference I700008 10001 and part number 2610700, the HAMAL 400 manages motor movement, remote control operation, safety devices and automatic gate functions.
The control board operates from a 230V single-phase power supply and controls one 24V gate operator up to 80W. It incorporates a dual-channel radio receiver, allowing compatible BFT remote controls to be programmed directly to the gate automation system.
Programming is performed using integrated dip switches and potentiometers, providing straightforward adjustment during installation and maintenance. The HAMAL 400 also incorporates BFT D-Track anti-crushing technology for intelligent force management and obstacle detection.
The BFT HAMAL 400 is suitable as a replacement control board for compatible DEIMOS BT A400 sliding gate automation systems in residential, commercial and industrial applications.
Key Features
- Original BFT electronic control board
- Model HAMAL 400
- Reference I700008 10001
- Part number 2610700
- Designed for BFT DEIMOS BT A400
- Controls one 24V sliding gate operator
- 230V single-phase board power supply
- 24V 80W operator power supply
- Built-in dual-channel radio receiver
- Dip-switch programming
- Potentiometer adjustment
- BFT D-Track anti-crushing system
- Opening and closing slowdown
- Automatic closing function
- Pedestrian opening via remote control
- Rapid closing function
- 8K2 obstruction sensor input
- Removable colour-coded terminal blocks
Technical Specifications
| Brand | BFT |
| Model | HAMAL 400 |
| Reference | I700008 10001 |
| Part Number | 2610700 |
| Product Type | Sliding Gate Motor Control Board |
| Compatible Motor | BFT DEIMOS BT A400 |
| Number of Operators | 1 |
| Board Power Supply | 230V Single-Phase |
| Operator Power Supply | 24V |
| Maximum Operator Power | 80W |
| Radio Receiver | Built-in Dual Channel |
| Programming | Dip Switch & Potentiometers |
| Safety Technology | BFT D-Track |
| Slowdown | Opening & Closing |
| Safety Edge Input | 8K2 |
BFT HAMAL 400 for DEIMOS BT A400
The BFT HAMAL 400 is specifically designed for the BFT DEIMOS BT A400 sliding gate operator. It manages the 24V motor, safety accessories, remote control receiver and automatic operating functions of the gate system.
When replacing an existing board, the model and reference number should be checked before installation to ensure correct compatibility.
Built-In Dual-Channel Radio Receiver
The HAMAL 400 includes an integrated dual-channel radio receiver, allowing compatible BFT remote controls to be programmed directly to the control board without requiring a separate external receiver.
BFT D-Track Anti-Crushing System
The BFT D-Track system provides intelligent force management during automatic gate movement. The control system monitors the force required to move the gate and assists with obstacle detection during operation.
Dip-Switch & Potentiometer Programming
Programming and adjustment of the HAMAL 400 are performed using dip switches and potentiometers. This allows installers to configure important operating parameters and functions according to the gate installation.
Automatic Closing & Pedestrian Opening
The BFT HAMAL 400 supports useful automatic gate functions including automatic closing, pedestrian opening through remote control and rapid closing.
These functions can be configured according to the requirements of the residential or commercial sliding gate installation.
Opening & Closing Slowdown
The HAMAL 400 provides slowdown during opening and closing. Controlled slowdown near the end of gate travel helps provide smoother movement and reduces mechanical stress on the sliding gate automation system.
Replacement Control Board for BFT Sliding Gate Motor
The BFT HAMAL 400 I700008 10001 is suitable as a replacement control board for compatible BFT DEIMOS BT A400 sliding gate motors when the existing electronic board is damaged or faulty.
Before replacement, the motor, power supply, photocells, limit switches, wiring and other connected accessories should also be inspected to determine the cause of the original control board failure.
Applications
- BFT DEIMOS BT A400 sliding gate motors
- Residential sliding gates
- Villa entrance gates
- Commercial sliding gates
- Apartment building entrances
- Office vehicle entrances
- Factories and warehouses
- Sliding gate motor repair
- Gate control board replacement
- Automatic gate maintenance
BFT HAMAL 400 Control Board Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies BFT HAMAL 400 control boards in UAE together with BFT DEIMOS sliding gate motors, remote controls, photocell sensors, flashing lights, gate racks and original BFT replacement spare parts.
Supply, installation, programming and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
