BFT GIOTTO BT A 60 U 6M Parking Gate Barrier UAE

The BFT GIOTTO BT A 60 U 6M Parking Gate Barrier is a professional 24V automatic boom barrier designed for vehicle entrances with a clear opening of up to 6 metres. The GIOTTO BT A 60 U combines a long boom capacity, fast operation and advanced electronic control for residential communities, commercial car parks and professional vehicle access control systems.

Powered by a 24V motor, the BFT GIOTTO BT A 60 U provides an opening time of approximately 5 seconds. Its intensive-use design makes it suitable for entrances requiring frequent daily vehicle movements, including apartment buildings, offices, hotels, warehouses, factories and controlled parking facilities.

The barrier is managed by the BFT MERAK BG control unit and uses an encoder for movement monitoring and impact reaction. An integrated slowdown function provides smooth boom movement near the opening and closing positions, helping reduce mechanical stress during frequent operation.

The GIOTTO BT A 60 U also supports an optional backup battery power supply system that can be installed inside the barrier cabinet. With IP54 protection, mechanical locking, personal-key manual release and interconnectivity support, the GIOTTO provides a reliable solution for automatic vehicle access control installations.

Key Features

• Genuine BFT automatic parking gate barrier
• Model GIOTTO BT A 60 U
• Product code P940080 00002
• Part number 2600876
• Maximum clear opening up to 6 metres
• 24V automatic barrier motor
• Approximately 5-second opening time
• Designed for intensive use
• MERAK BG control unit
• Encoder impact reaction and movement monitoring
• Automatic slowdown function
• Mechanical locking system
• Personal-key manual release
• Optional on-board backup battery system
• Interconnectivity support
• IP54 protection rating
• RAL 7015 cabinet finish
• Suitable for access control integration

Technical Specifications

6 Meter Automatic Parking Barrier

The BFT GIOTTO BT A 60 U is designed for wide vehicle entrances requiring a clear passage of up to 6 metres. The long boom configuration makes it suitable for residential communities, commercial car parks, industrial entrances and other controlled vehicle access points.

Its 6-metre capacity allows a single barrier system to control wide entrance or exit lanes where shorter parking barriers may not provide sufficient coverage.

24V Intensive-Use Barrier Motor

The GIOTTO BT A 60 U uses a 24V motor system designed for intensive automatic barrier operation. Low-voltage technology provides precise electronic control of boom movement and supports advanced safety and slowdown functions.

The intensive-use design makes the barrier suitable for locations with frequent daily vehicle movements and demanding parking access requirements.

Fast 5-Second Opening

The BFT GIOTTO BT A 60 U provides an opening time of approximately 5 seconds. This allows efficient vehicle entry and exit while maintaining controlled movement of the long barrier boom.

Fast operation helps reduce waiting times at residential compounds, office car parks, commercial properties, factories and other controlled vehicle entrances.

MERAK BG Control Board

The BFT MERAK BG control unit provides electronic management of the GIOTTO automatic parking barrier. The control unit is positioned in an easily accessible area and is separated from the mechanical section for convenient programming, installation and maintenance.

The control system manages boom movement, safety devices and compatible vehicle access control accessories.

Encoder Impact Detection

The GIOTTO BT A 60 U uses an encoder to monitor boom movement and provide electronic impact reaction during automatic operation.

For additional vehicle and pedestrian protection, compatible photocell sensors, safety devices and vehicle loop detectors can be integrated into the barrier system.

Automatic Slowdown

The integrated automatic slowdown function reduces boom speed near the end of the opening and closing movements. This provides smoother operation and helps reduce mechanical stress on the barrier mechanism and boom arm.

Backup Battery Ready

An optional backup battery power supply system can be installed on board the BFT GIOTTO BT A 60 U. When correctly configured, the backup system can help maintain barrier operation during temporary mains power interruptions.

Access Control System Integration

The BFT GIOTTO BT A 60 U can be integrated with a wide range of vehicle access control and parking management equipment for automatic or authorised entry and exit.

• Remote controls and radio receivers
• Push buttons and key switches
• Photocell safety sensors
• Vehicle loop detectors
• UHF long-range RFID readers
• RFID vehicle tags and cards
• GSM gate controllers
• Access control systems
• ANPR / license plate recognition systems
• Traffic lights
• Parking management systems

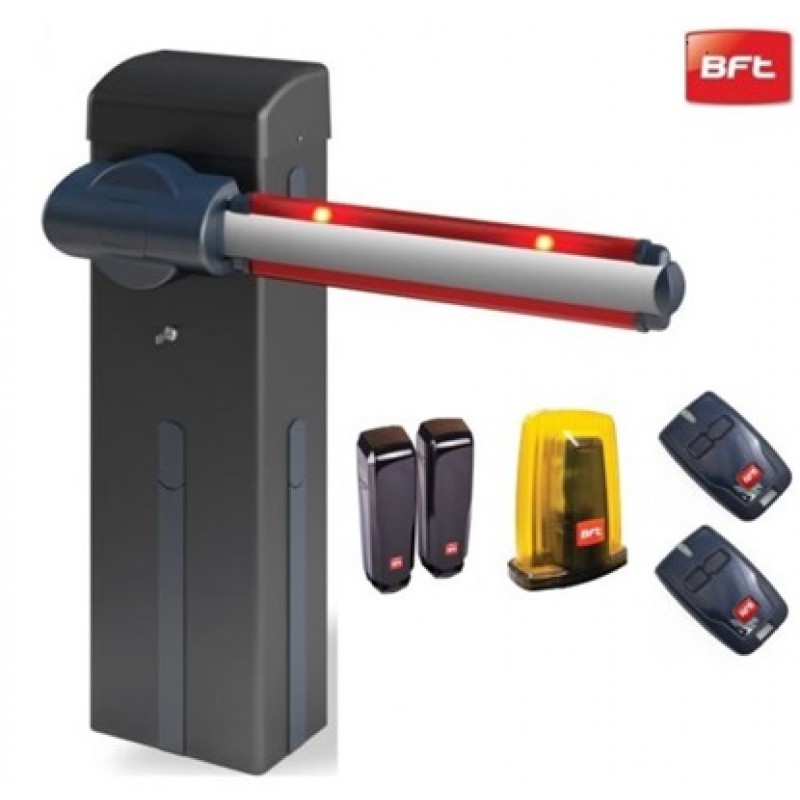

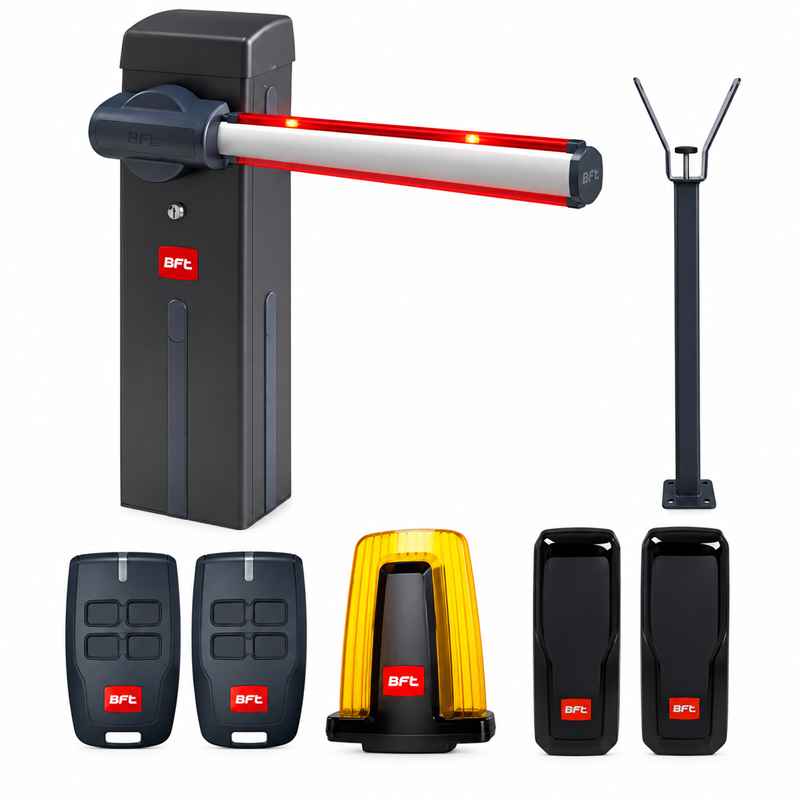

BFT GIOTTO BT A 60 U Kit Includes

• 1 × BFT GIOTTO BT A 60 U Automatic Barrier
• 1 × 6 Meter Compatible Barrier Boom Arm
• 1 × BFT MERAK BG Control Unit
• 2 × BFT Remote Controls
• 1 × Pair of Photocell Safety Sensors
• 1 × Push Button
• 1 × Manual Release Key
• 1 × Installation Accessory Set

Applications

• Residential community entrances
• Apartment building parking
• Commercial car parks
• Office building entrances
• Shopping centres
• Hotels and hospitals
• Schools and universities
• Factories and warehouses
• Industrial facilities
• Logistics centres
• Business parks
• Private parking areas
• Wide vehicle entrance and exit lanes

BFT GIOTTO 6M Parking Barrier Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies BFT GIOTTO BT A 60 U 6M parking gate barriers in UAE together with compatible boom arms, remote controls, photocell sensors, loop detectors, RFID readers and vehicle access control accessories.

Professional supply, installation, programming, maintenance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
