BFT BOTTICELLI BT A1250

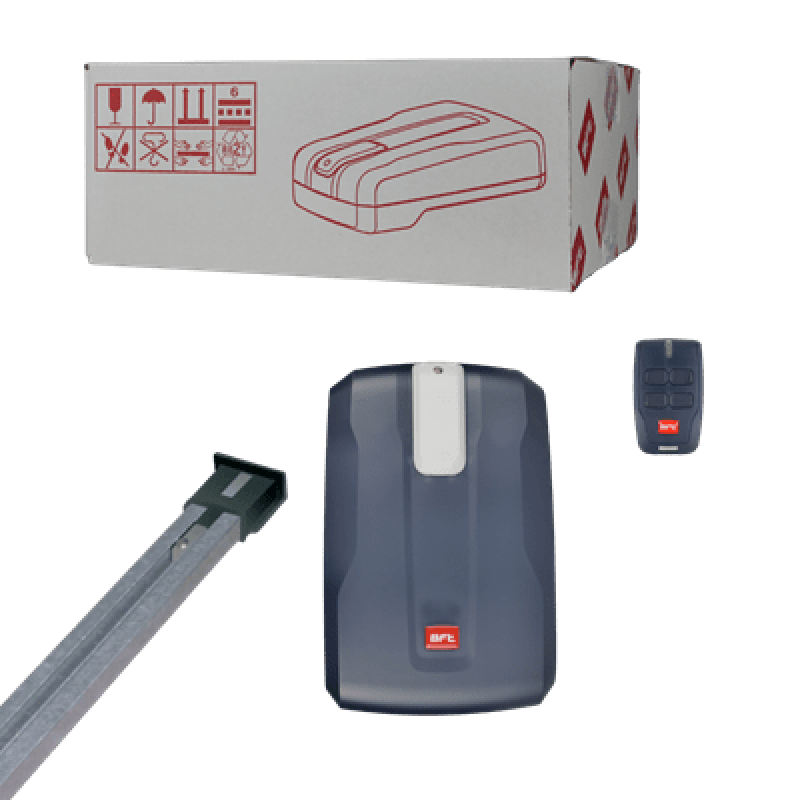

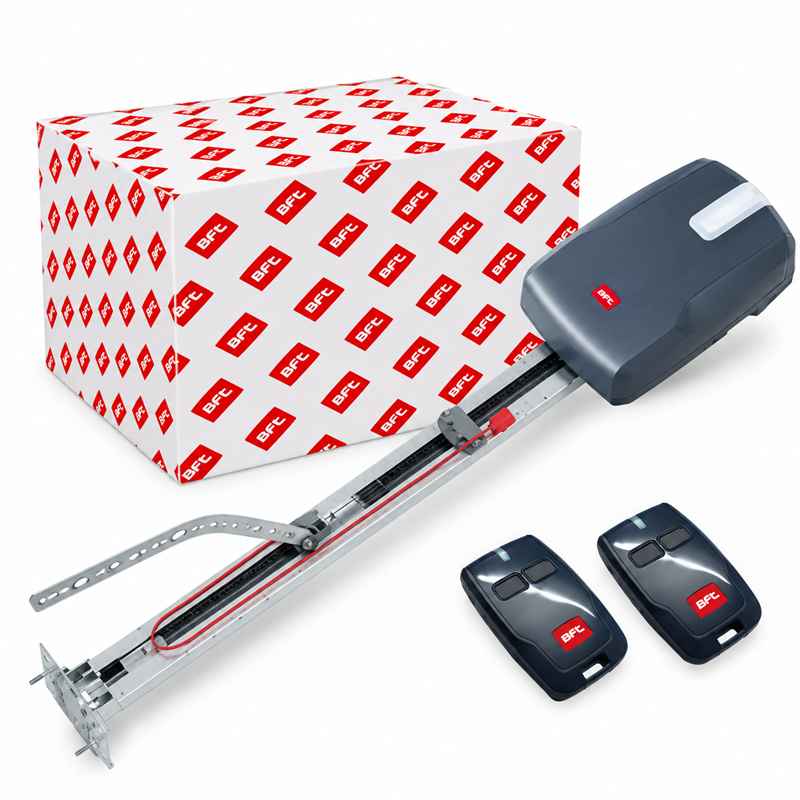

BOTTICELLI SMART BT A 1250 Garage Door Opener:

• BOTTICELLI SMART BT A 1250
• Refence P915213 00002
• Part number 2601283
• 24 V operator for sectional garage doors with tractive force 120 kg
• and very intensive use. Max door surface area 16 m².
• Opening speed 190 mm/sec.

Main features:

• Fast and powerful motors: fast opening to minimise waiting times
• and intensive use of the automation for all types of application
• Encoder and exclusive D-Track force management system
• for safe installation in all conditions.

Technical Data Sheets:

• Control unit : VENERE BT A DIS
• Nominal voltage : 24 V
• Power consumption : 236 W
• Consumption on standby : 0.5 W
• Tractive force and thrust : 1250 N
• Number of daily movements at 60° : 100
• Door surface area : 16 m²
• Max opening speed (chain rail)
• Max opening speed (belt rail) : N/A mm/sec
• Type of limit switch : Encoder + mechanical stop for opening
• Slowdown : Yes
• Locking : Mechanical
• Release : Steel cord or cable
• Impact reaction : D-Track
• Protection rating : IP20
• Environmental conditions : -20 ÷ 60 °C
• Interconnectivity : Yes
