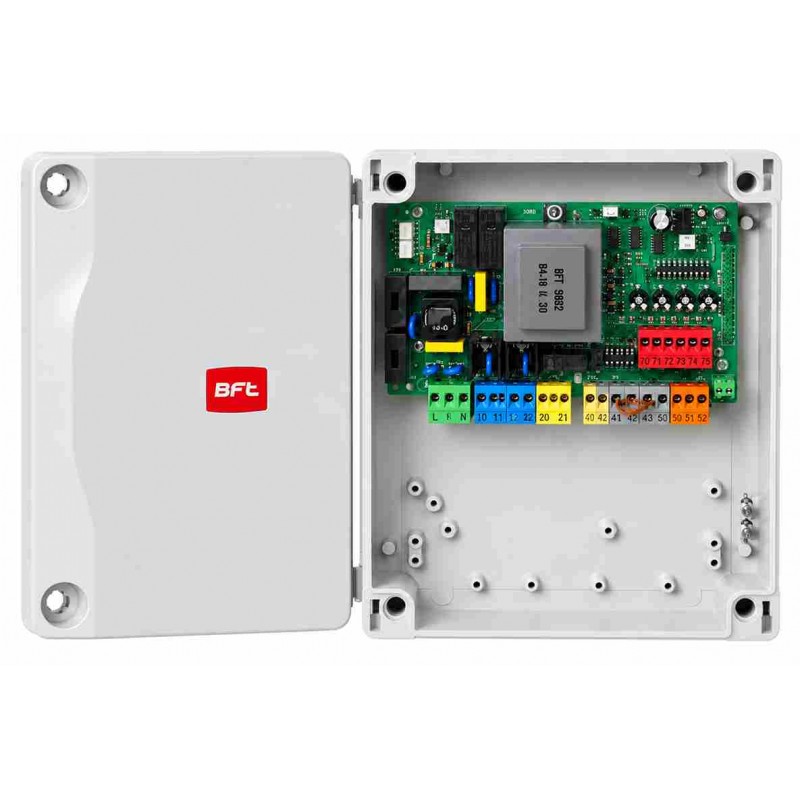

BFT ALENA SW2 Control Board for Swing Gate Motors
Price 900 AEDIn Stock
The BFT ALENA SW2 Control Board D113811 00004 is an electronic control panel designed for automatic swing gate systems using one or two compatible BFT 230V operators. It manages gate motor movement, remote controls, safety devices, electronic locks and automatic operating functions.
The ALENA SW2 operates from a 230V single-phase power supply and can control one or two 230V single-phase swing gate operators. It is suitable for compatible BFT swing gate automation systems including the BFT ATHOS AC A25 and ATHOS AC A40.
Programming is performed through integrated trimmers and DIP switches. The control panel also features an integrated radio receiver, pedestrian opening by remote control, soft opening and closing, electronic motor torque control and management of compatible safety devices.
The BFT ALENA SW2 is suitable for new installations as well as replacement and repair of compatible BFT automatic swing gate systems.
Key Features
- BFT ALENA SW2 electronic control board
- Product code D113811 00004
- Designed for automatic swing gates
- Controls one or two operators
- 230V single-phase power supply
- 230V single-phase operator supply
- Integrated radio receiver
- Programming by trimmers and DIP switches
- Remote-controlled pedestrian opening
- Soft opening and closing management
- Electronic motor torque control
- 8K2/contact resistive safety edge management
- Verified safety device management
- Electronic lock management
- Pressure surge during opening
- 3/4-step logic
- Partial opening function
- Fast closing function
- Self-diagnostics
- Removable colour-coded terminal blocks
Technical Specifications
| Brand | BFT |
| Model | ALENA SW2 |
| Product Code | D113811 00004 |
| Product Type | Swing Gate Motor Control Board |
| Number of Operators | 1 or 2 |
| Board Power Supply | 230V Single-Phase |
| Operator Power Supply | 230V Single-Phase |
| Programming | Trimmers & DIP Switches |
| Radio Receiver | Integrated |
| Safety Edge | 8K2 / Contact |
| Motor Torque Control | Electronic |
| Pedestrian Opening | Yes |
| Compatible Motors | BFT ATHOS AC A25 / ATHOS AC A40 |
BFT 230V Control Board for ATHOS AC A25 & A40
The BFT ALENA SW2 is designed for compatible BFT 230V swing gate automation systems. It can manage either a single swing gate operator or two operators for a double-leaf automatic gate.
Compatible applications include BFT ATHOS AC A25 and ATHOS AC A40 swing gate motors. Always confirm the motor model and existing control board before ordering a replacement.
Control for Single & Double Swing Gates
The ALENA SW2 can control one or two swing gate motors, making it suitable for both single-leaf and double-leaf automatic swing gates.
For double swing gates, the control board coordinates the operation of both motors according to the selected programming and gate configuration.
Integrated BFT Radio Receiver
The BFT ALENA SW2 includes an integrated radio receiver for programming compatible BFT remote controls directly into the automatic gate system.
This provides convenient wireless gate operation without requiring a separate external receiver in compatible installations.
Trimmer & DIP-Switch Programming
Configuration of the ALENA SW2 is performed using integrated trimmers and DIP switches. These controls allow the installer to configure important operating functions according to the swing gate installation.
Soft Opening & Closing
The BFT ALENA SW2 supports soft opening and closing management, helping provide smoother movement during automatic gate operation.
Correct adjustment can help reduce mechanical stress on the swing gate operators and gate hardware during regular opening and closing cycles.
Electronic Motor Torque Control
The control panel provides electronic motor torque control, allowing motor force to be managed according to the requirements of the automatic swing gate installation.
Pedestrian Opening
The ALENA SW2 supports pedestrian opening by remote control. This allows partial gate access without requiring the complete automatic gate to open when correctly configured.
Safety Device Management
The control board supports compatible automatic gate safety equipment including 8K2/contact resistive safety edges and verified safety devices.
Safety accessories should be installed and configured according to the gate system requirements and applicable installation standards.
Electronic Lock Management
The BFT ALENA SW2 can manage compatible electronic gate locks. This is particularly useful on swing gate installations where an electric lock is required to secure the gate in the closed position.
Replacement BFT Swing Gate Control Board
The BFT ALENA SW2 D113811 00004 is suitable for replacement and repair of compatible BFT swing gate automation systems when the existing electronic control board is faulty or damaged.
Before replacing the control board, the gate motors, capacitors, power supply, photocells, limit switches, electronic lock, safety devices and field wiring should be inspected to identify any external fault.
Applications
- BFT ATHOS AC A25 swing gate motors
- BFT ATHOS AC A40 swing gate motors
- Single-leaf automatic swing gates
- Double-leaf automatic swing gates
- Residential villa gates
- Commercial entrance gates
- Apartment building entrances
- Factories and warehouses
- Swing gate motor repair
- Control board replacement
- Automatic gate maintenance
