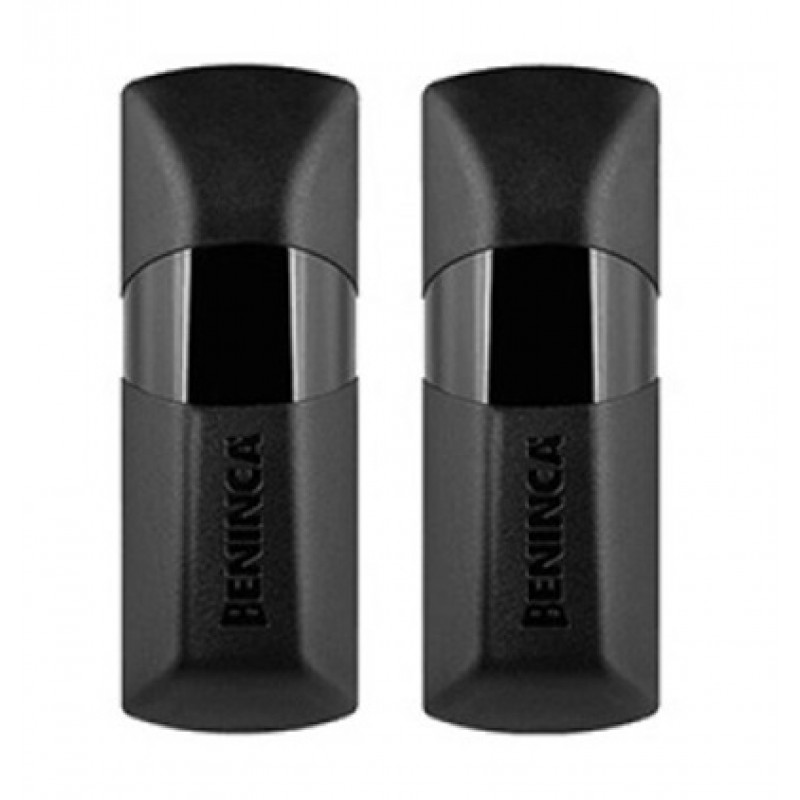

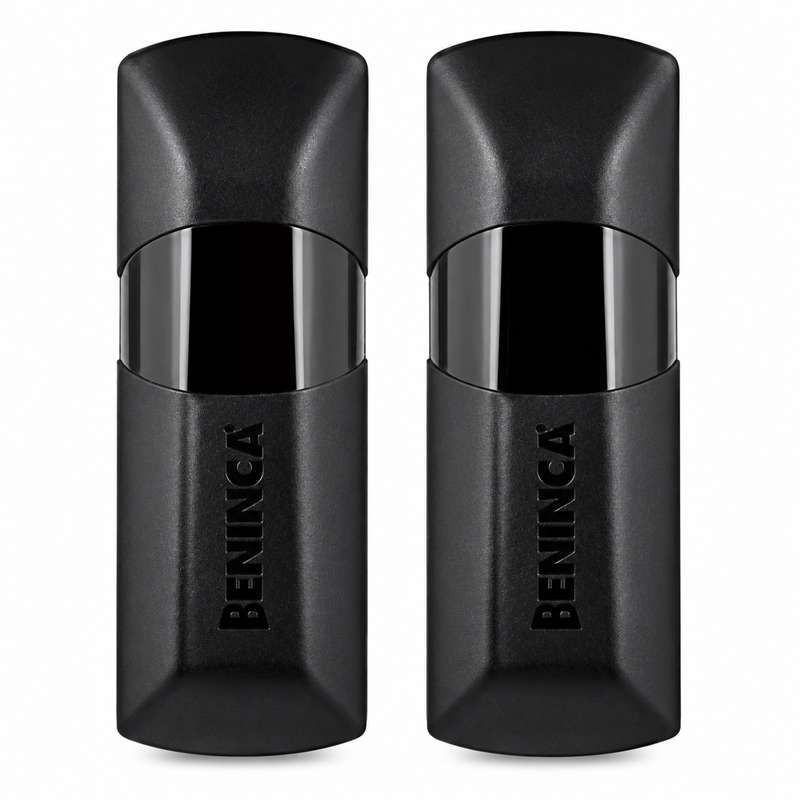

BENINCA PUPILLA Photocell Sensor UAE
Price 200 AEDIn Stock
The BENINCA PUPILLA Photocell Sensor is a pair of adjustable infrared safety photocells designed for automatic gates, doors and access control systems. With an adjustable angle of up to 180°, the PUPILLA provides flexible installation and accurate alignment for sliding gates, swing gates and other automatic entrance systems.
The BENINCA PUPILLA operates with a power supply of 22–30 Vac or 20–28 Vdc and allows synchronization of up to 4 pairs of photocells. This makes it suitable for installations requiring multiple safety detection points around an automatic gate.
An integrated LED alignment indicator helps installers quickly identify the optimal alignment between the transmitter and receiver. This simplifies installation, adjustment and maintenance while helping ensure reliable obstacle detection.
The PUPILLA photocells provide an important safety function for automatic gate systems by detecting obstacles, vehicles or pedestrians across the infrared beam and sending a safety signal to the compatible gate automation control system.
Key Features
- Genuine BENINCA photocell sensors
- Model PUPILLA
- Supplied as a pair of photocells
- Adjustable through 180°
- 22–30 Vac power supply
- 20–28 Vdc power supply
- Synchronization of up to 4 pairs
- Integrated LED for easy alignment
- LED indicates optimal photocell alignment
- Flexible installation angle
- Designed for automatic gate safety
- Suitable for sliding gate motors
- Suitable for swing gate motors
- Suitable for automatic access systems
- Compatible with suitable BENINCA gate automation systems
Technical Specifications
| Brand | BENINCA |
| Model | PUPILLA |
| Product Type | Infrared Safety Photocell Sensor |
| Quantity | 1 Pair |
| Adjustment | Up to 180° |
| AC Power Supply | 22–30 Vac |
| DC Power Supply | 20–28 Vdc |
| Synchronization | Up to 4 Pairs |
| Alignment Indicator | LED |
| Application | Automatic Gate Safety |
180° Adjustable Photocell Sensor
One of the main advantages of the BENINCA PUPILLA is its ability to be adjusted through 180 degrees. This provides greater installation flexibility when the transmitter and receiver cannot be installed directly opposite each other in a standard fixed position.
The adjustable design allows installers to accurately direct the infrared beam between the two photocells for reliable automatic gate safety operation.
LED Alignment Indicator
The BENINCA PUPILLA incorporates an LED alignment indicator that signals when optimal alignment has been achieved. This helps simplify installation and allows the installer to accurately align the transmitter and receiver.
Correct photocell alignment is important for reliable detection and helps prevent unnecessary interruptions to automatic gate operation.
Synchronize Up to 4 Pairs
The PUPILLA system supports synchronization of up to 4 pairs of photocells. This is particularly useful for automatic gate installations requiring multiple photocell safety points.
Multiple synchronized pairs can help provide additional protection around automatic sliding gates, swing gates and vehicle access systems while reducing interference between nearby photocells.
Automatic Gate Safety Applications
- Sliding gate motors
- Swing gate motors
- Automatic driveway gates
- Residential entrance gates
- Commercial entrance gates
- Villa gate automation
- Vehicle access systems
- Automatic gate safety systems
BENINCA PUPILLA Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies BENINCA PUPILLA photocell sensors in UAE for sliding gates, swing gates and automatic gate safety applications.
Supply, professional installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
