BENINCA CP.CORE Control Board UAE

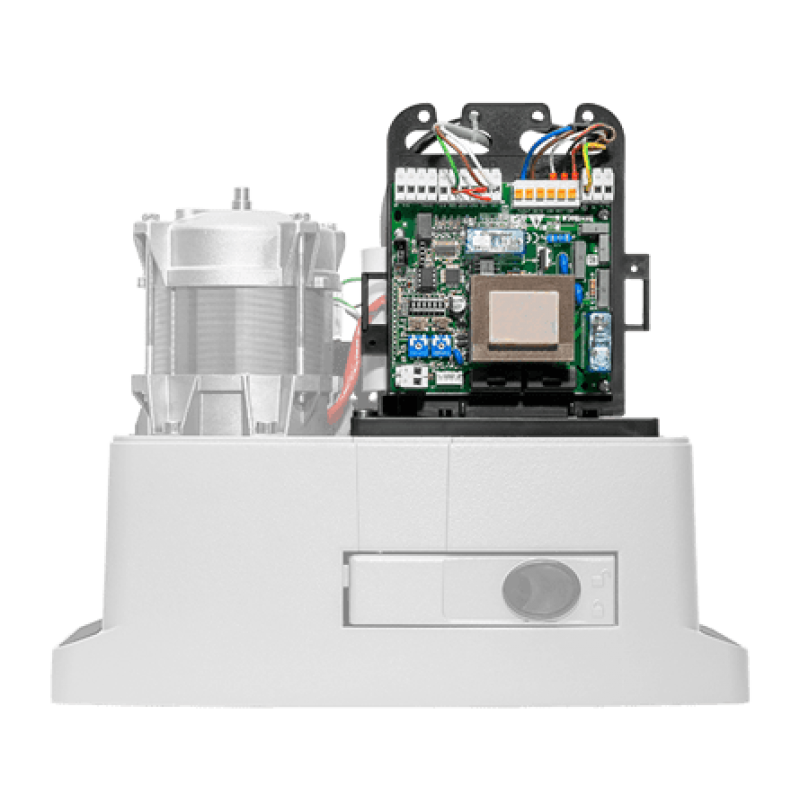

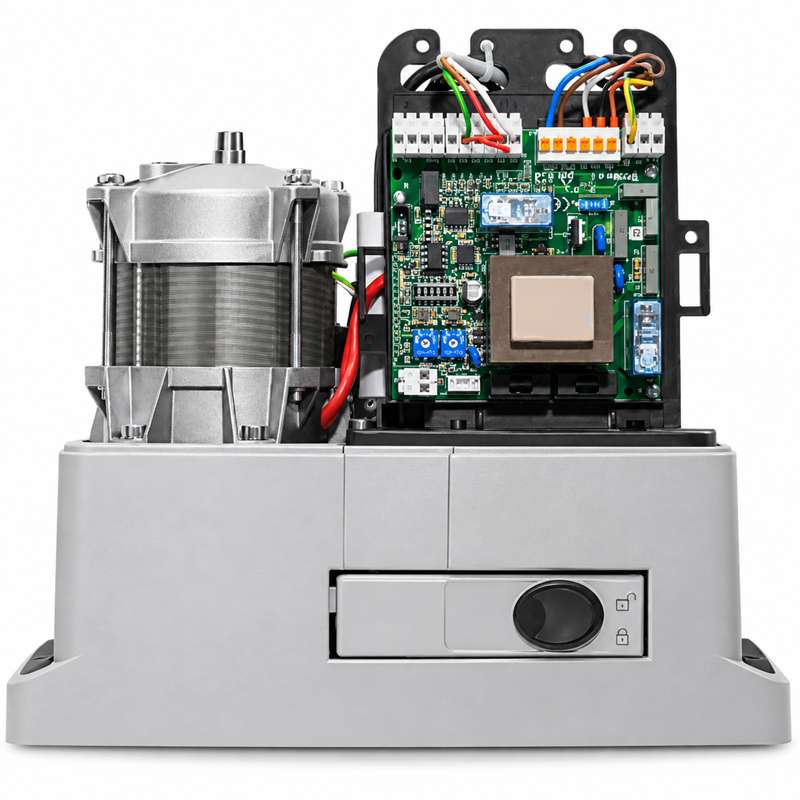

The BENINCA CP.CORE Control Board is a 230V electronic control unit designed for compatible BENINCA sliding gate automation systems, including the BULL5M and BULL6M series. It provides complete management of the gate motor, safety devices, limit switches, remote controls and operating functions for reliable automatic sliding gate operation.

The BENINCA CP.CORE operates from a 230 Vac 50/60 Hz power supply and controls a 230 Vac motor up to 750 W. Operating parameters and logic can be configured using practical trimmers and dip-switches, making installation and adjustment straightforward for professional gate automation technicians.

An integrated 433.92 MHz ARC radio receiver can store up to 64 transmitters, eliminating the need for a separate receiver in standard installations. The control board also supports the optional BENINCA MAG.E encoder for obstacle detection and improved control of gate movement.

The CP.CORE provides automatic parameter setup, adjustable slowdowns, five-level electronic motor torque adjustment, programmable photocell management and multiple command inputs. These functions make it a complete replacement or installation control board for compatible BENINCA sliding gate motors.

Key Features

• Genuine BENINCA control board
• Model CP.CORE
• Designed for sliding gate automation
• Compatible with BENINCA BULL5M
• Compatible with BENINCA BULL6M
• 230 Vac 50/60 Hz control unit supply
• 230 Vac motor output up to 750 W
• Integrated 433.92 MHz radio receiver
• Advanced Rolling Code (ARC) radio coding
• Stores up to 64 transmitters
• Parameter adjustment by trimmers and dip-switches
• Automatic operating logic
• Semi-automatic operating logic
• Deadman operating logic
• MAG.E encoder input for obstacle detection
• Motor limit switch inputs
• Step-by-step command input
• Pedestrian command function
• Stop command input
• Programmable photocell input
• Gate-open indicator output
• Flashing light connection output
• Automatic setup of operating parameters
• Automatic slowdown setup
• Adjustable slowdowns
• 5-level electronic motor torque adjustment
• Advantouch transmitter management support
• Removable terminal blocks for easier wiring

Technical Specifications

Compatible with BENINCA BULL5M & BULL6M

The BENINCA CP.CORE is designed to manage one compatible BENINCA sliding gate actuator from the BULL5M or BULL6M series. It controls the motor, limit switches, safety accessories and operating commands required for automatic sliding gate operation.

When purchasing the CP.CORE as a replacement board, always confirm the existing motor model and control board version before installation.

Integrated 433.92 MHz ARC Receiver

The CP.CORE incorporates a 433.92 MHz radio receiver using BENINCA Advanced Rolling Code (ARC) technology. The receiver can store up to 64 compatible transmitters.

This allows compatible BENINCA remote controls to be programmed directly into the control board without requiring a separate external radio receiver.

MAG.E Encoder & Obstacle Detection

The CP.CORE provides an input for the optional BENINCA MAG.E encoder. When the encoder is installed, the control system can monitor gate movement and detect obstacles during operation.

Encoder management also helps provide more precise control during gate movement and slowdown phases.

Automatic Setup & Adjustable Slowdowns

The BENINCA CP.CORE includes an automatic setup function for operating and slowdown parameters. This helps simplify initial commissioning and allows the control board to establish suitable operating parameters for the gate.

Slowdown settings can also be adjusted to provide smoother movement as the sliding gate approaches its opening and closing positions.

5-Level Electronic Torque Adjustment

Motor torque can be electronically adjusted across 5 levels. This allows installers to configure the motor force according to the gate installation and operating requirements.

Photocell & Gate Safety Inputs

The CP.CORE provides programmable photocell management together with motor limit switch, step-by-step, pedestrian and stop inputs. The photocell input can be configured for operation during both opening and closing or during closing only.

The step-by-step input can also be configured as an opening command, while the stop input can be configured as a closing or pedestrian command.

Advantouch Remote Management

Compatible transmitters stored in the integrated receiver can be managed using the BENINCA Advantouch system, providing a practical method of managing radio transmitters in compatible installations.

BENINCA CP.CORE Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies BENINCA CP.CORE control boards in UAE for compatible BENINCA BULL5M and BULL6M sliding gate automation systems.

Replacement control boards, BENINCA remote controls, photocells, flashing lights, encoders and gate automation accessories are available for installations throughout the UAE.
