BENINCA CP.BULL8-OM Control Board UAE
Price 1,200 AEDIn Stock

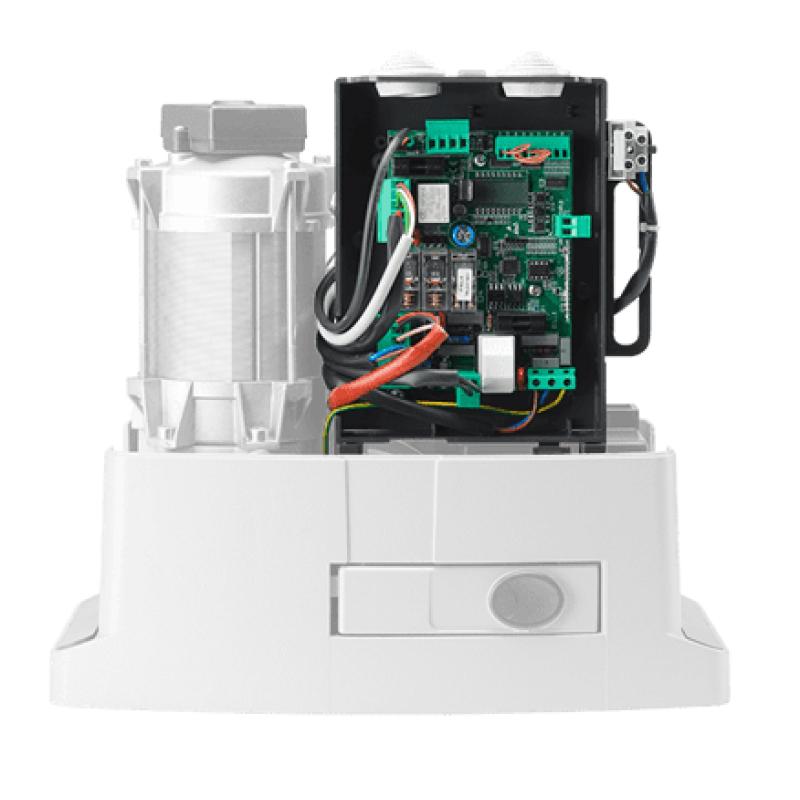

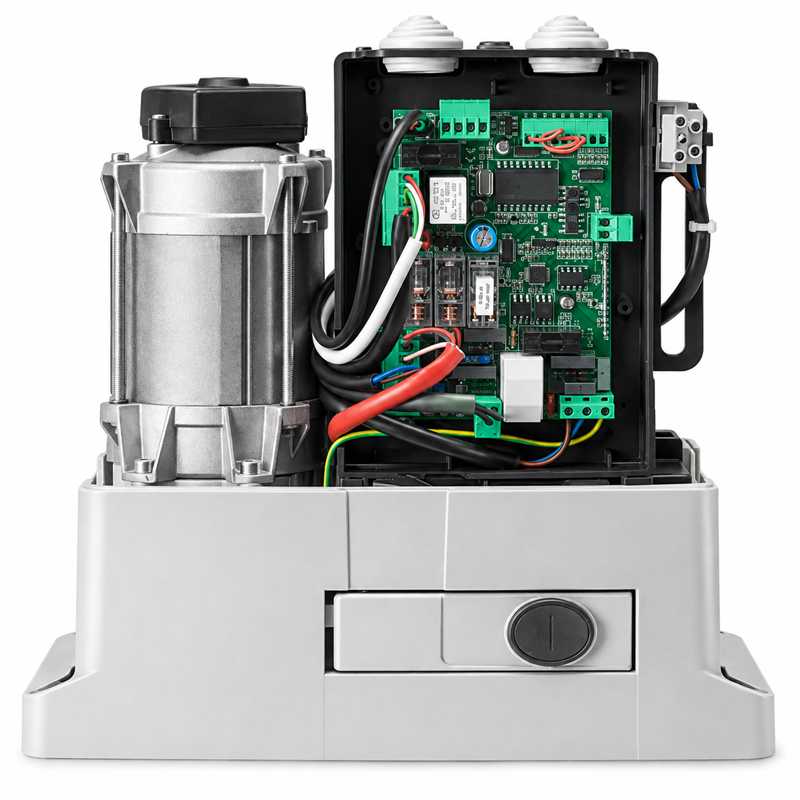

The BENINCA CP.BULL8-OM Control Board is an advanced electronic control unit designed for compatible BENINCA sliding gate automation systems, including the BULL8M and BULL8 OM series. It provides complete electronic management of the sliding gate motor, encoder, limit switches, photocells, safety devices and remote controls.
The BENINCA CP.BULL8-OM operates from a 230 Vac 50/60 Hz power supply and is designed to manage one compatible sliding gate actuator. An integrated LCD display provides convenient access to programming parameters and operating functions during installation, setup and maintenance.
The control board includes an integrated 433.92 MHz radio receiver with memory for up to 64 transmitters. It supports BENINCA Advanced Rolling Code, Rolling Code and Fixed Code radio systems, providing compatibility with suitable BENINCA remote controls.
Advanced functions include encoder management for obstacle detection, automatic setup of operating parameters, electronic motor torque adjustment, adjustable slowdowns and electronic braking. These features make the CP.BULL8-OM suitable for professional installation and replacement applications on compatible BENINCA sliding gate motors.
Key Features
- Genuine BENINCA control board
- Model CP.BULL8-OM
- Designed for sliding gate automation
- Compatible with BENINCA BULL8M series
- Compatible with BENINCA BULL8 OM series
- 230 Vac 50/60 Hz control unit supply
- Motor control up to 750 W
- Integrated LCD display
- Integrated 433.92 MHz radio receiver
- Memory for up to 64 transmitters
- Advanced Rolling Code support
- Rolling Code support
- Fixed Code support
- Encoder input for obstacle detection
- Motor limit switch inputs
- Automatic operating logic
- Semi-automatic operating logic
- Deadman operating logic
- Step-by-step command input
- Pedestrian command input
- Stop command input
- PHOT O photocell input
- PHOT C photocell input
- N.C. or 8K2 safety edge input
- Automatic setup of operating parameters
- Electronic motor torque adjustment
- Adjustable slowdowns
- Electronic braking
- Gate-open indicator output
- Second radio channel output
- Photocell testing function
- Service light output
- Flashing light connection
- Removable terminal blocks
- Operating cycle counter
- Maintenance reminder management
- Programming access password
- Advantouch system compatibility
Technical Specifications
| Brand | BENINCA |
| Model | CP.BULL8-OM |
| Product Type | Sliding Gate Motor Control Board |
| Application | 1 Sliding Gate Actuator |
| Compatible Series | BULL8M / BULL8 OM |
| Control Unit Supply | 230 Vac – 50/60 Hz |
| Maximum Motor Power | 750 W |
| Display | Integrated LCD |
| Radio Receiver | Integrated 433.92 MHz |
| Remote Memory | Up to 64 Transmitters |
| Radio Coding | ARC / Rolling Code / Fixed Code |
| Encoder Input | Yes |
| Obstacle Detection | Via Encoder |
| Limit Switch Inputs | Yes |
| Photocell Inputs | PHOT O / PHOT C |
| Safety Edge | N.C. / 8K2 |
| Autoset | Yes |
| Torque Adjustment | Electronic |
| Slowdown | Adjustable |
| Electronic Braking | Yes |
| Programming Security | Access Password |
Compatible with BULL8M & BULL8 OM
The BENINCA CP.BULL8-OM control board is designed to manage one sliding gate actuator from the compatible BULL8M and BULL8 OM series. It provides electronic control of the motor, encoder, limit switches, safety devices and operating commands.
When purchasing the board as a replacement part, the existing BENINCA motor model and control board version should be checked before installation.
Integrated 433.92 MHz Radio Receiver
The CP.BULL8-OM includes an integrated 433.92 MHz radio receiver with memory for up to 64 transmitters.
The receiver supports Advanced Rolling Code (ARC), Rolling Code and Fixed Code, allowing compatible BENINCA remote controls to be programmed directly into the control board.
Encoder & Obstacle Detection
The control board manages the motor encoder to provide accurate monitoring throughout the opening and closing cycle. Encoder feedback also enables obstacle detection and improves precision during gate movement.
Automatic Setup & Torque Adjustment
The automatic setup function automatically configures important operating parameters, helping simplify installation and commissioning of the sliding gate automation system.
Electronic motor torque adjustment allows the installer to configure the operating force according to the requirements of the gate and installation.
Photocell & Safety Edge Inputs
The CP.BULL8-OM provides separate PHOT O and PHOT C photocell inputs for management of compatible gate safety photocells.
An additional input supports an N.C. or 8K2 sensitive safety edge, allowing compatible safety-edge devices to be incorporated into the automatic gate system.
Electronic Braking & Adjustable Slowdowns
Adjustable slowdown management provides smoother gate movement as the gate approaches the opening and closing positions. The control board also incorporates electronic braking for improved control of the motor during operation.
Advantouch Remote Management
The BENINCA CP.BULL8-OM supports the Advantouch system for compatible parameter configuration and radio transmitter management.
Additional professional functions include a manoeuvre counter, maintenance request management and password protection to help prevent unauthorized modification of control-board settings.
BENINCA CP.BULL8-OM Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies BENINCA CP.BULL8-OM control boards in UAE for compatible BENINCA BULL8M and BULL8 OM sliding gate automation systems.
BENINCA replacement control boards, remote controls, photocells, flashing lights, safety devices and sliding gate motor spare parts are available for automatic gate installations throughout the UAE.
