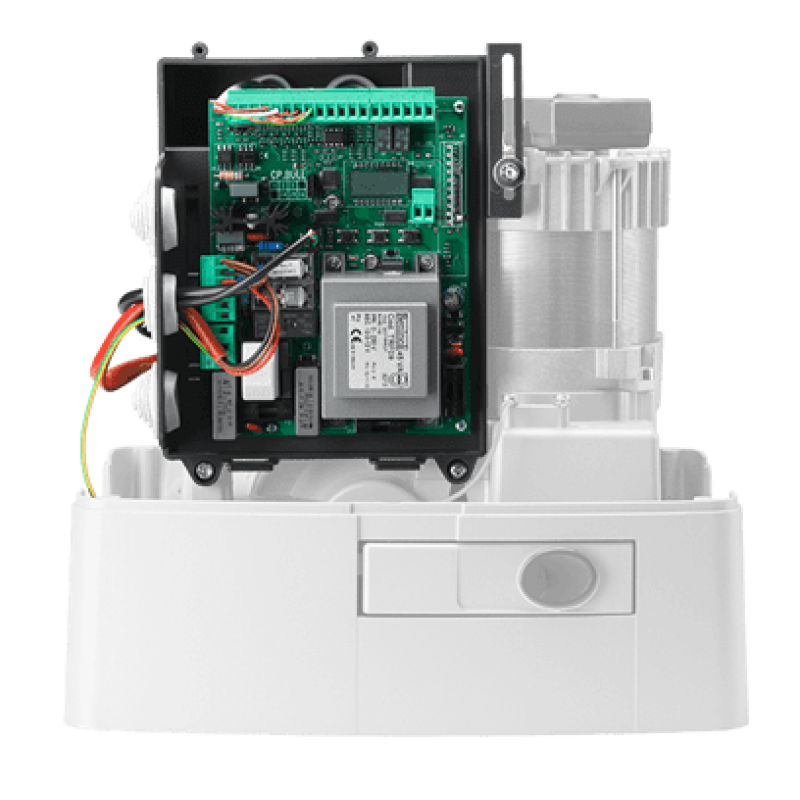

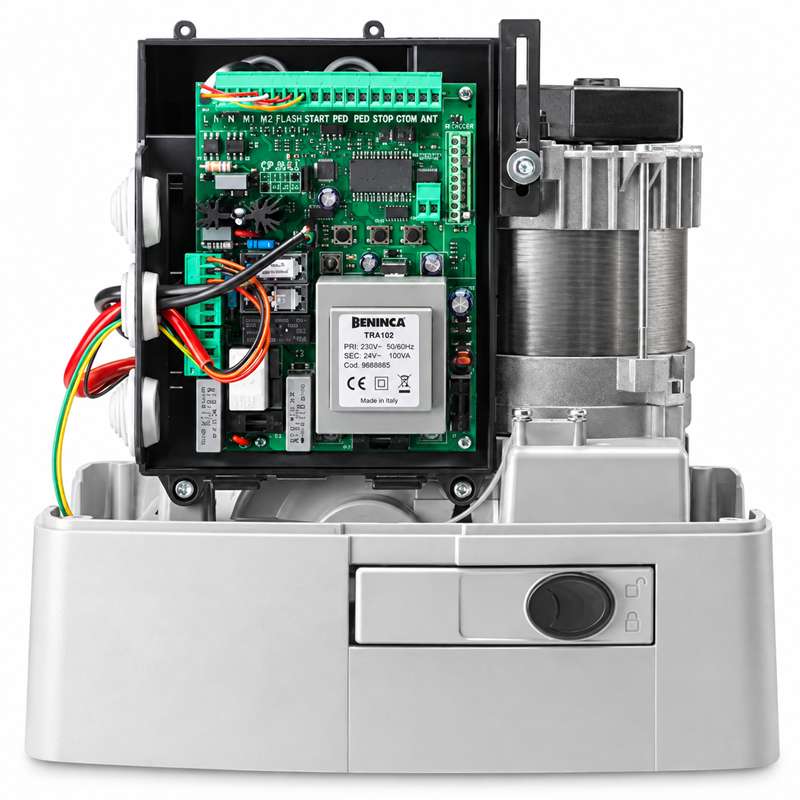

BENINCA CP.BULL-RI Control Board UAE

The BENINCA CP.BULL-RI Control Board is an advanced 230V electronic control unit designed for BENINCA BULL10M, BULL15M and BULL20M sliding gate automation systems. It provides complete electronic management of the sliding gate motor, encoder, limit switches, photocells, safety devices and remote controls.

The BENINCA CP.BULL-RI operates from a 230 Vac 50/60 Hz power supply and supports a 230 Vac motor up to 1000 W. Its integrated LCD display provides convenient access to operating parameters, programming functions and system configuration during installation and maintenance.

An integrated 433.92 MHz radio receiver provides memory for up to 64 transmitters and supports Advanced Rolling Code (ARC), Rolling Code and Fixed Code radio systems. Compatible BENINCA remote controls can therefore be programmed directly into the control board.

Advanced functions include encoder management for obstacle detection, automatic setup of operating parameters, electronic motor torque adjustment, adjustable slowdowns and electronic braking for precise stopping even with heavy sliding gates.

Key Features

• Genuine BENINCA control board
• Model CP.BULL-RI
• Designed for sliding gate automation
• Compatible with BENINCA BULL10M
• Compatible with BENINCA BULL15M
• Compatible with BENINCA BULL20M
• 230 Vac 50/60 Hz control unit power supply
• 230 Vac motor supply up to 1000 W
• Integrated LCD programming display
• Integrated 433.92 MHz radio receiver
• Memory for up to 64 transmitters
• Advanced Rolling Code (ARC)
• Rolling Code support
• Fixed Code support
• Encoder input for obstacle detection
• Motor limit switch inputs
• Open command input
• Close command input
• Pedestrian opening input
• Step-by-step command input
• Stop command input
• PHOT O photocell input
• PHOT C photocell input
• N.C. or 8K2 safety edge input
• Photocell testing output
• Flashing light output
• Automatic operating logic
• Semi-automatic operating logic
• Deadman operating logic
• Automatic setup of operating parameters
• Electronic motor torque adjustment
• Adjustable slowdown system
• Electronic braking
• Removable terminal blocks
• Gate-open indicator output
• Service light output option
• Second radio channel output option
• Operating cycle counter
• Maintenance warning function
• Programming access password
• Advantouch system compatibility

Technical Specifications

Compatible with BULL10M, BULL15M & BULL20M

The BENINCA CP.BULL-RI control board is designed to manage one compatible sliding gate actuator from the BULL10M, BULL15M or BULL20M series.

The board manages the motor, encoder, limit switches, photocells, safety devices and operating commands required for a complete automatic sliding gate installation.

When purchasing the CP.BULL-RI as a replacement control board, always confirm the existing BENINCA motor model and board version before installation.

Integrated 433.92 MHz Radio Receiver

The CP.BULL-RI incorporates a 433.92 MHz radio receiver with memory for up to 64 transmitters.

The receiver supports Advanced Rolling Code (ARC), Rolling Code and Fixed Code, allowing compatible BENINCA remote controls to be programmed directly into the control board.

Encoder & Obstacle Detection

The control board provides an encoder input for obstacle detection. Encoder feedback allows the controller to accurately monitor the movement of the automatic sliding gate during opening and closing.

This provides precise gate movement management and allows the control system to detect abnormal resistance during operation.

Automatic Setup & Torque Adjustment

The automatic setup function automatically adjusts important operating parameters, helping simplify installation, commissioning and testing of the gate automation system.

Electronic motor torque adjustment allows the operating force to be configured according to the requirements of the sliding gate installation.

Photocell & Safety Edge Management

The CP.BULL-RI provides separate PHOT O and PHOT C photocell inputs. PHOT O can be programmed for operation during opening and closing or during closing only, while PHOT C can operate during both opening and closing.

The control board also provides an input for an N.C. or 8K2 sensitive safety edge, allowing compatible safety devices to be integrated into the automatic gate system.

Adjustable Slowdowns & Electronic Braking

Adjustable slowdown settings provide smoother gate movement as the sliding gate approaches its opening and closing positions.

The electronic braking system provides precise stopping performance even when controlling heavy sliding gates, making the CP.BULL-RI particularly suitable for the larger BULL series motors.

Advantouch Remote Management

The BENINCA CP.BULL-RI supports the Advantouch system for compatible parameter configuration and radio transmitter management.

Professional management functions also include an operating cycle counter, maintenance warning and programming access password to help protect control board settings against unauthorized changes.

BENINCA CP.BULL-RI Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies BENINCA CP.BULL-RI control boards in UAE for compatible BULL10M, BULL15M and BULL20M sliding gate automation systems.

BENINCA replacement control boards, remote controls, photocells, flashing lights, safety devices and sliding gate motor spare parts are available for automatic gate installations throughout the UAE.
