BAME TIGER 400

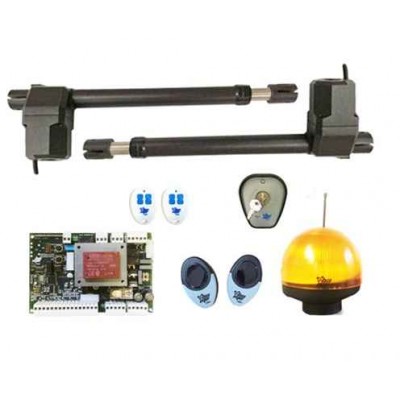

BAME TIGER 400 Swing Gate Motor in UAE

• BAME TIGER 400-230
• 230V irreversible electromechanical gear motor for residential use
• Power supply for single or double swing gates up to 3.5 m.
• The motor body is made of die-cast aluminium painted
• with epoxy powder to ensure high resistance against oxidation phenomena
• the worm gear motor is lubricated
• with permanent grease and does not require maintenance.
• It allows manual movement of the gate even in the event of a power failure
• by using the emergency release located above each piston.
• The 24 Volt version can be equipped with an emergency battery
• for automatic movement of the gate even in the absence of mains voltage.

Technical Features:

• Engine power supply : 230 VDC
• Maximum current absorbed : 1.5 A
• Maximum thrust : 300 N
• Maximum stroke : 400mm
• Work cycle : Residential
• Protection index : IP44
• Operating temperature : -20°C /+50°C
• Lubrication : Fat
• Max door length : 3.5 m
• Kit weight : 15.5 kg
• Control center : ANTARES
