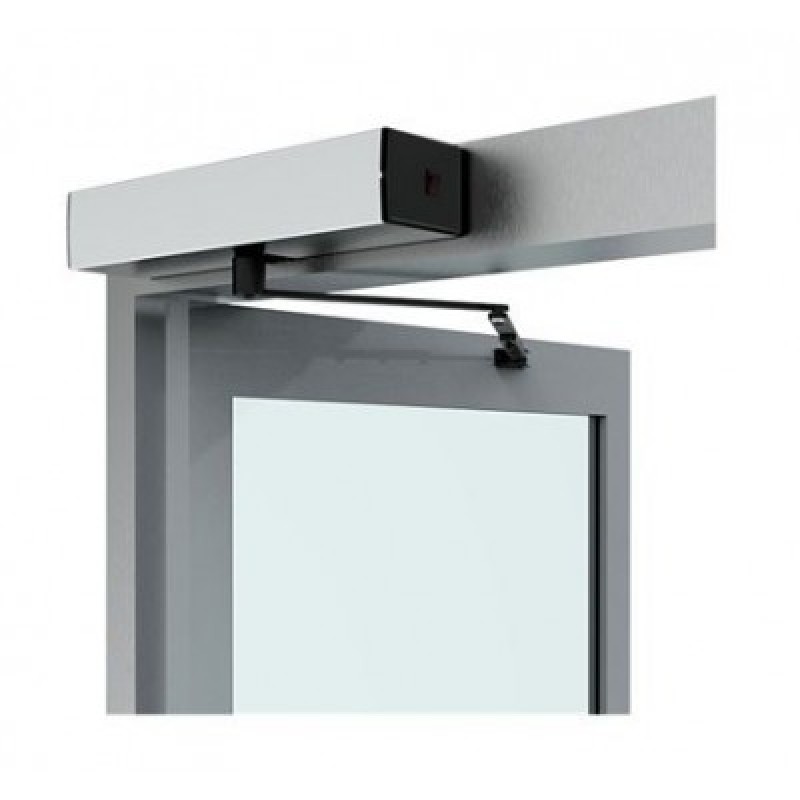

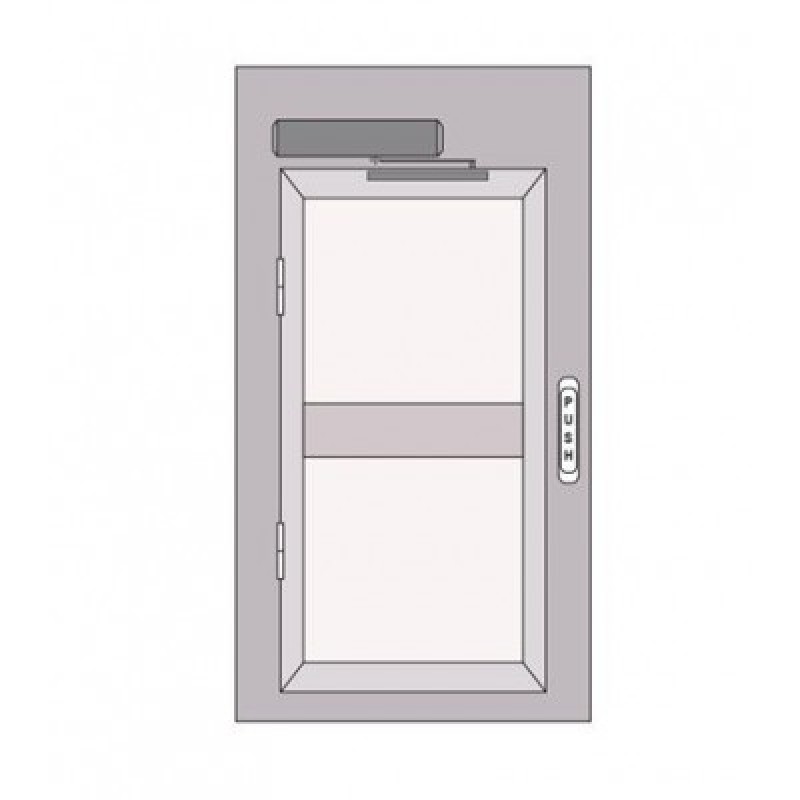

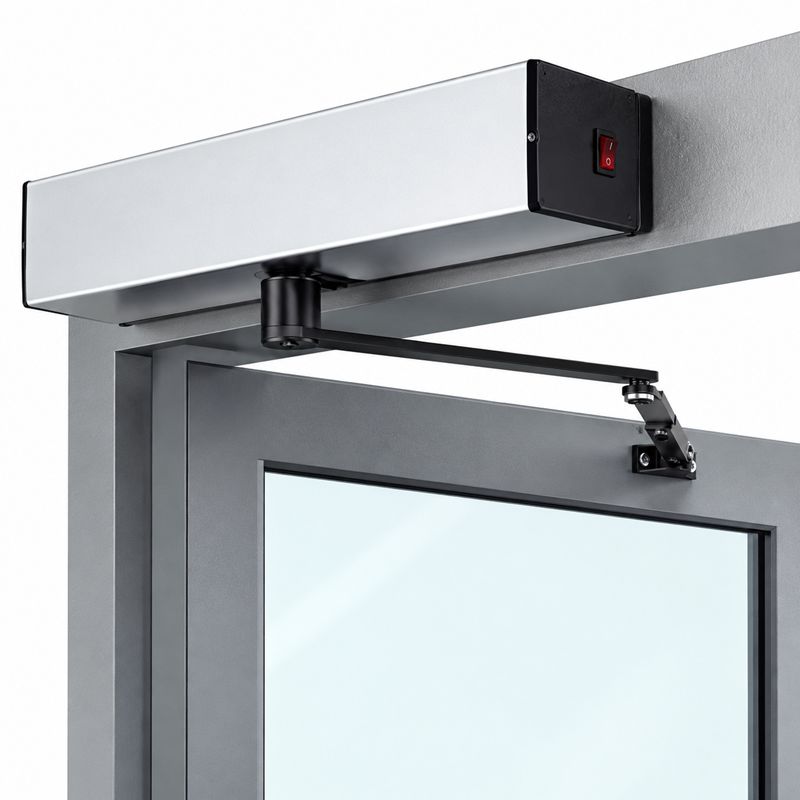

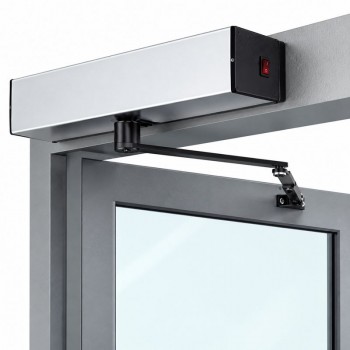

Automatic Swing Door Opener 300 KG UAE
Price 2,499 AEDIn Stock
The Automatic Swing Door Opener 300 KG is a heavy-duty automatic door operator designed for compatible swing doors weighing up to 300 kg. It provides smooth and controlled automatic opening and closing for commercial, residential and high-traffic entrance applications.
The operator features an advanced microprocessor controller and an energy-efficient brushless motor designed for reliable and low-noise operation. Opening speed, closing speed and hold-open time can be adjusted according to the door and installation requirements.
The automatic swing door opener can operate as a standalone system using remote controls and sensors or can be integrated with RFID access control, PIN keypads, fingerprint readers, facial recognition systems, push buttons and other compatible access-control devices.
Key Features
- Heavy-duty automatic swing door opener
- Suitable for compatible doors up to 300 KG
- 110V / 220V AC power supply
- Advanced microprocessor controller
- Energy-efficient brushless motor
- Smooth and low-noise operation
- Adjustable opening speed
- Adjustable closing speed
- 3–7 second opening time at 90°
- 1–30 second adjustable hold-open time
- Push and pull arm configurations
- Automatic and manual operation
- Auto-reverse function
- Electric lock integration
- RFID access control compatible
- PIN keypad compatible
- Fingerprint access compatible
- Facial recognition compatible
- Microwave sensor activation
- Remote control operation
- Fire alarm system integration support
Technical Specifications
| Product Type | Automatic Swing Door Operator |
| Maximum Door Weight | 300 KG |
| Power Supply | 110V / 220V AC |
| Motor Type | Brushless Motor |
| Opening Time | 3–7 Seconds / 90° |
| Hold-Open Time | 1–30 Seconds Adjustable |
| Opening Speed | Adjustable |
| Closing Speed | Adjustable |
| Arm Configuration | Push / Pull |
| Operating Modes | Automatic / Lock / One Way / Half-Open / Hold-Open |
| Auto Reverse | Yes |
| Electric Lock Function | Supported |
| Access Control | Supported |
| Fire Alarm Integration | Supported |
| Protection Level | IP12D |
| Operating Temperature | -20°C to +55°C |
| Operator Dimensions | 450 × 85 × 100 mm |
| Unit Weight | 15 KG |
Heavy-Duty Automatic Swing Door Opener
The 300 KG automatic swing door opener is designed for heavier compatible swing doors requiring a powerful automatic opening and closing solution.
It is particularly suitable for commercial and public-access entrances where a stronger automatic door operator is required.
Automatic Door Opener for Doors Up to 300 KG
The operator is designed for compatible swing doors weighing up to 300 KG.
Actual operator suitability depends on several factors including door weight, door width, hinge condition, opening direction, wind load and installation geometry. These conditions should be checked before installation.
Brushless Automatic Door Motor
The automatic door operator uses an efficient brushless motor designed for smooth operation, long service life and reduced maintenance.
Brushless motor technology is particularly suitable for automatic entrance systems requiring frequent daily operation.
110V / 220V Automatic Door Operator
The operator supports 110V / 220V AC power input, providing flexibility for different electrical installations.
The power supply and electrical protection should be installed according to the requirements of the automatic door system.
Adjustable Opening & Closing Speed
Both opening and closing speeds can be adjusted to provide smooth door movement according to the size, weight and operating requirements of the entrance.
Correct speed adjustment is particularly important when automating heavier swing doors.
3–7 Second Opening Time
The automatic swing door operator provides an adjustable opening time of approximately 3 to 7 seconds for a 90-degree opening.
The installer can configure the operating speed according to the door and application requirements.
1–30 Second Hold-Open Time
The door can remain open for approximately 1 to 30 seconds before automatically closing.
The hold-open time can be adjusted according to pedestrian traffic and entrance requirements.
Push Arm & Pull Arm Installation
The automatic swing door operator supports both PUSH and PULL arm configurations.
- PULL Arm: Used when the operator pulls the door open
- PUSH Arm: Used when the operator pushes the door open
The correct arm should be selected according to the operator mounting position and door opening direction.
Microwave Sensor Automatic Door Opening
A compatible microwave motion sensor can activate the automatic swing door when a person approaches.
This provides convenient hands-free entrance operation for commercial buildings, hospitals, offices and other pedestrian entrances.
Remote Control Door Opening
The automatic swing door opener can also be operated using compatible wireless remote controls.
Remote operation is useful for reception desks, offices, security entrances and other applications where authorised personnel need to open the door remotely.
Wireless & Wired Push Button Activation
Compatible wired or wireless push buttons can be used to activate the automatic door.
Push-button activation provides a simple method of automatic door operation for reception areas, offices and accessible entrances.
RFID Access Control Integration
The automatic swing door operator can be integrated with compatible RFID access control systems.
After an authorised card or key fob is presented, the access controller sends an opening command to the automatic door operator.
Fingerprint Access Control
A compatible fingerprint reader can be connected to provide biometric-controlled automatic door entry.
After successful authentication, the access control system activates the swing door operator.
Facial Recognition Door Access
Compatible facial-recognition access systems can also be integrated with the automatic door operator.
This allows authorised users to enter through the automatic swing door after successful identity verification.
PIN Code Keypad Access
A standalone or network access-control keypad can be used to activate the automatic door after an authorised PIN code is entered.
RFID + PIN systems can also be used where additional access security is required.
Electric Lock Integration
The operator supports integration with compatible electric locking systems.
The controller can coordinate the electric lock release and automatic opening sequence so the door unlocks before powered movement begins.
Auto-Reverse Function
The automatic swing door operator includes an auto-reverse function designed to improve operational safety when resistance is detected during door movement.
Appropriate activation and safety sensors should also be selected according to the entrance and installation requirements.
Multiple Operating Modes
The operator provides several configurable operating modes:
- Automatic – Standard automatic opening and closing
- Lock – Secures the entrance when required
- One Way – Controls pedestrian traffic direction
- Half-Open – Reduced door opening where configured
- Hold-Open – Keeps the door open when required
Fire Alarm System Integration
The automatic swing door controller supports integration with compatible fire alarm systems.
The required door response during an alarm should be configured according to the building's approved fire and life-safety requirements.
Automatic Door Opener for Commercial Entrances
The heavy-duty operator is suitable for compatible commercial entrance doors requiring automatic pedestrian access.
It can be combined with motion sensors, access control readers, push buttons and electric locks to create a complete automatic entrance system.
Automatic Door Opener for Hospitals
Hospitals, clinics and healthcare facilities can use automatic swing door operators to provide convenient hands-free access.
Compatible microwave sensors or non-touch activation switches can be used where contactless door operation is preferred.
Automatic Door Opener for Offices
Office entrances can integrate the automatic swing door operator with RFID cards, PIN keypads, fingerprint readers or facial-recognition access control.
This combines controlled entry with convenient automatic door opening.
Automatic Swing Door Opener Applications
- Heavy swing doors
- Commercial entrance doors
- Office buildings
- Hospitals and clinics
- Banks
- Hotels
- Shopping and retail entrances
- Residential buildings
- Elderly care facilities
- Reception entrances
- Staff access doors
- Access-controlled entrances
- Public-access buildings

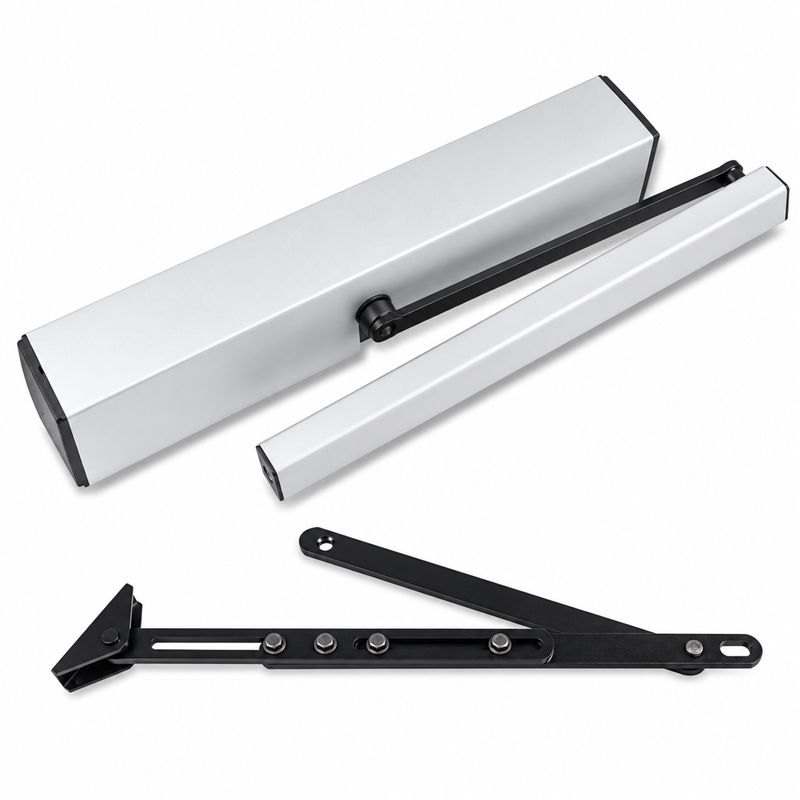

Door Opener Kit Includes
- 1 × Automatic Swing Door Opener 220V
- 1 × Pull Arm / Push Arm
- 1 × Microwave Sensor
- 2 × Remote Controls
- 1 × English User Manual
Professional Automatic Swing Door Installation
Professional installation is recommended for the 300 KG automatic swing door operator. Correct operator mounting, arm geometry, door alignment, speed adjustment and safety configuration are important for reliable operation.
The door weight, width, hinges, opening direction and required activation devices should be checked before installation.
Automatic Swing Door Opener 300 KG Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies automatic swing door openers up to 300 KG in UAE for heavy-duty residential, commercial and public-access door applications.
Supply, installation, programming, maintenance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
