Rolling Shutter Receiver

Rolling Shutter Remote Receiver Controller in UAE

• 433MHZ Digital Electric Roller Door Motor Remote Control
• Rolling Shutter Controller Garage Door Remote Control Receiver 433.92m
• Wireless remote control shutter controller

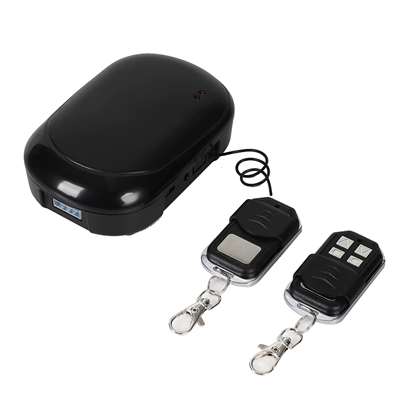

• Product Name: Wireless remote control shutter controller
•  First, the scope of application
• Mainly in various electric shutter door / window motor remote control,
• garage door, remote door lock, rolling door motor,
• industrial control and wireless burglar alarm
•  Second, the functional characteristics
• There is a direct docking interface with the rolling door motor,
• which can be manually controlled and remotely controlled
• fixed code remote control; the remote control is very convenient,
• self-supporting various common welding code remote control,
• dialing remote control and copying remote control
• Third, ancillary products A white packaging carton,
• a rolling door controller,
• and a four-button remote control with a gold-plated wooden push-up cover.
•  Fourth, the operating instructions:
•  The control motor is an AC single-phase motor
• after the controller is powered on, the motor does not move

Technical Parameters:

• Receiving control box
• Volume: 102 X 80 X 35mm
• Weight: 217g
• the use of temperature: -10-70 degrees
• working voltage: AC220
• working frequency: 315MHz, 433.92 MHz
• receiving mode: super regeneration (or super heterodyne)
• contact current: 220V 10A
• Volume: 58*38*13mm
• Weight: 31g
• the use of temperature: -10-70 degrees
• working voltage: 12V
• working frequency: 315MHz, 433.92 MHz
• remote control distance: 50 meters or more
