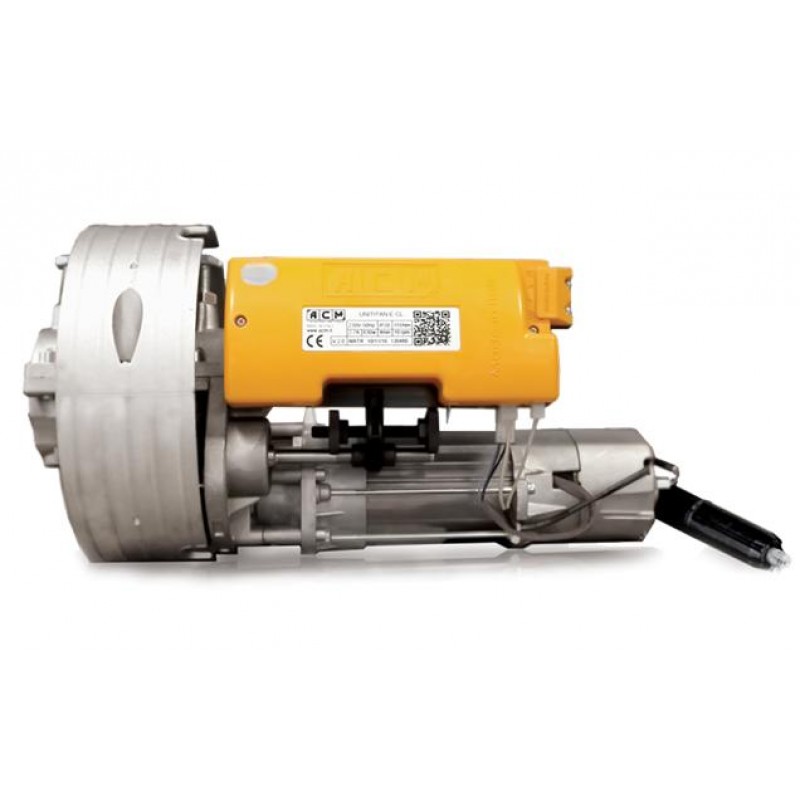

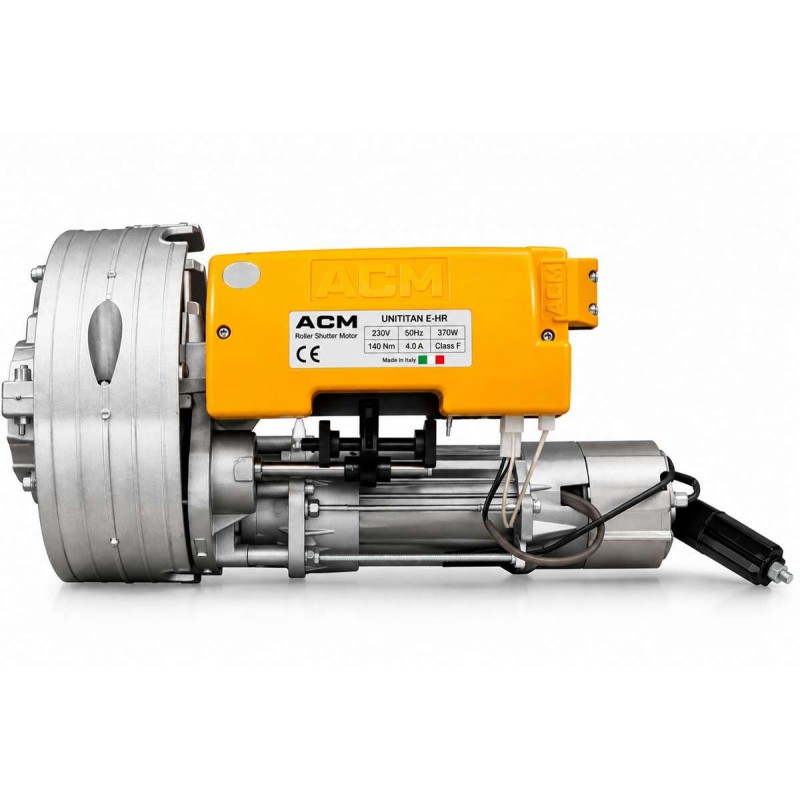

ACM 170Nm 140kg Rolling Shutter Central Motor UAE
Price 720 AEDIn Stock
The ACM 170Nm 140kg Rolling Shutter Central Motor is a reliable and powerful automation solution designed for residential, commercial and light industrial rolling shutters. With a strong 170Nm torque output and lifting capacity of up to 140kg, this motor provides smooth and dependable operation for shops, garages, warehouses and commercial roller shutter doors.
Operating on a 230V single-phase power supply, the ACM central motor is designed for durability, low maintenance and reliable everyday operation. It is suitable for both new rolling shutter installations and replacement of existing shutter motors throughout the UAE.
Key Features
- Genuine ACM rolling shutter central motor
- Powerful 170Nm torque output
- Maximum lifting capacity up to 140kg
- 230V single-phase power supply
- Smooth and reliable rolling shutter operation
- Heavy-duty and durable construction
- Low maintenance design
- Suitable for new installations and replacement applications
- 60mm rolling shutter tube
- 205mm pulley spring box
- 100mm spindle
Technical Specifications
| Brand | ACM |
| Motor Type | Rolling Shutter Central Motor |
| Rated Torque | 170Nm |
| Maximum Lifting Capacity | Up to 140kg |
| Power Supply | 230V AC |
| Phase | Single Phase |
| Rolling Tube | 60mm |
| Pulley Spring Box | 205mm |
| Spindle | 100mm |
Applications
- Shop rolling shutters
- Garage roller shutters
- Warehouse rolling shutters
- Retail shop shutters
- Commercial roller doors
- Storage facility shutters
- Light industrial rolling shutters
Why Choose ACM 170Nm Central Motor?
The ACM 170Nm rolling shutter motor combines strong lifting performance with reliable daily operation. Its central motor design makes it an excellent choice for medium-duty rolling shutters where compact installation, durability and dependable performance are required.
