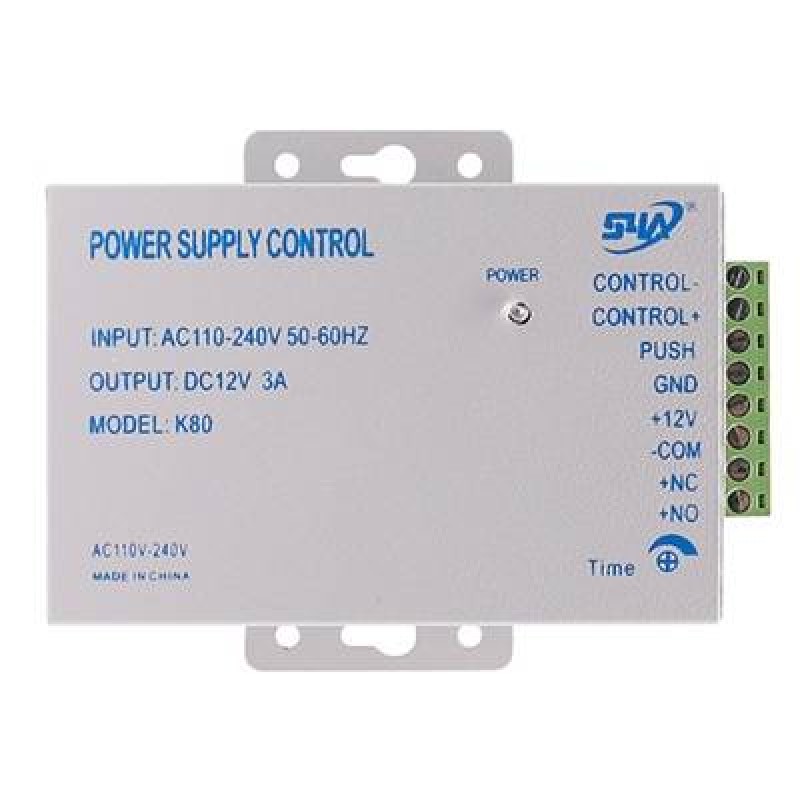

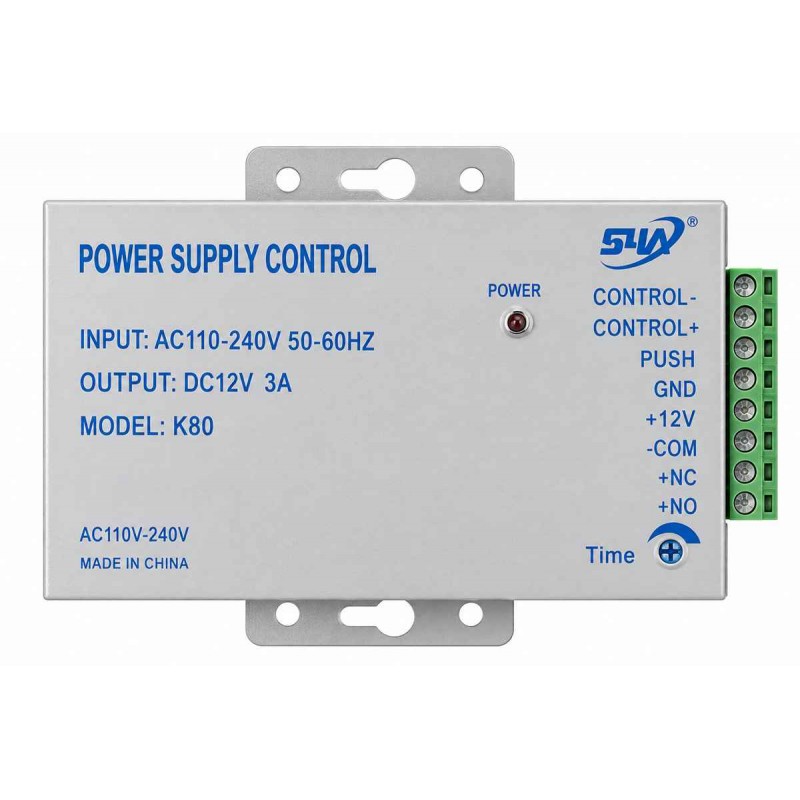

K80 Access Control Power Supply 12V 3A UAE
Price 99 AEDIn Stock
The K80 Access Control Power Supply 12V 3A is a compact power supply and door lock control unit designed for access control systems, electric locks, RFID readers, keypads and door release applications.
The K80 accepts a wide AC 110–240V input and provides a regulated DC 12V output with up to 3A current. With a rated power of 30W, it provides a practical solution for powering compatible access control equipment and electric locking devices.
An adjustable 0–15 second time delay allows the installer to configure the required door unlocking duration. The unit also supports NO or NC lock control for integration with different compatible electric locking systems.
Key Features
- K80 access control power supply
- AC 110–240V wide-range input
- DC 12V output
- Up to 3A output current
- 30W rated power
- NO / NC electric lock control
- Adjustable 0–15 second time delay
- Compact 104 × 69 × 33 mm design
- Suitable for access control systems
- Suitable for RFID access controllers
- Suitable for keypad access systems
- Suitable for electric locks
- Suitable for exit push buttons
- Residential and commercial applications
Technical Specifications
| Model | K80 |
| Product Type | Access Control Power Supply |
| Input Voltage | AC 110–240V |
| Output Voltage | DC 12V |
| Output Current | 3A |
| Rated Power | 30W |
| Lock Voltage | DC 12V |
| Lock Control | NO / NC |
| Time Delay | Adjustable 0–15 Seconds |
| Dimensions | 104 × 69 × 33 mm |
| Weight | 0.32 KG |
| Application | Access Control / Electric Lock Systems |
12V 3A Access Control Power Supply
The K80 power supply provides a DC 12V output with up to 3A current for compatible access control equipment.
It can provide power and lock-control functions within a compact access control installation, reducing the need for separate power and timing components in suitable systems.
AC 110–240V Wide Voltage Input
The K80 supports an AC 110–240V input, making it suitable for access control installations using compatible mains power supplies.
Mains electrical wiring should always be completed safely by a qualified installer.
30W Access Control Power Supply
The unit provides a rated power output of 30W with a maximum output current of 3A.
The total current requirements of the electric lock, access reader and other connected equipment should be calculated before installation to ensure they remain within the power supply rating.
Adjustable 0–15 Second Door Unlock Delay
The K80 includes an adjustable 0–15 second time delay for controlling the electric lock release duration.
This allows the installer to select an appropriate unlocking period according to the door, lock and access control application.
NO / NC Electric Lock Control
The K80 supports NO and NC lock-control configurations, allowing it to work with different compatible electric locking systems.
The correct connection should be selected according to whether the installed lock requires power to lock or power to release.
Magnetic Lock Power Supply
The K80 can be used with compatible 12V electromagnetic locks where the total current requirement is within the power supply's rated capacity.
The access control reader or controller provides the release command, and the K80 manages the corresponding lock-control output.
Electric Strike Lock Power Supply
Compatible 12V electric strike locks can also be integrated with the K80 access control power supply.
The adjustable release delay allows the electric strike to remain released for the selected period after an authorised access command.
Electric Bolt Lock Power Supply
The K80 can form part of a compatible electric bolt lock access control system.
The voltage, current requirement and operating method of the electric bolt should be confirmed before connection.
Electric Rim Lock Integration
Compatible 12V electric rim locks may also be controlled through an appropriate K80 installation, provided the lock's electrical requirements are within the unit's supported ratings.
For locks with high instantaneous current requirements, the installer should verify compatibility before making the connection.
RFID Access Control Power Supply
The K80 can be used with compatible RFID access control readers to create a complete electronic door access system.
When an authorised RFID card is presented, the access controller sends the unlock command and the power supply controls the connected electric lock.
Keypad Access Control System
A standalone keypad or RFID + PIN access controller can also be integrated with the K80.
After successful authentication, the controller sends the required signal to release the connected door lock for the programmed period.
Fingerprint & Biometric Access Control
Compatible fingerprint, facial recognition and biometric access controllers can also be used with the K80 power supply.
The K80 provides the required power and lock-control functions while the biometric controller manages user authentication.
Exit Push Button Connection
An exit push button can form part of the K80 access control installation to provide convenient door release from inside the secured area.
This creates a practical system with controlled electronic entry and simple push-button exit.
No Touch Exit Button Integration
A compatible no touch infrared exit button can also be integrated into the access control system for contactless door release.
This provides a convenient alternative to a conventional mechanical push-to-exit button.
Complete K80 Access Control System
A typical K80 access control installation may include:
- K80 12V 3A power supply
- RFID, keypad or biometric access controller
- Compatible 12V electric lock
- Exit push button
- RFID cards or key fobs
- Door contact where required
- Emergency release device where required
K80 Access Control Applications
- Office access control
- Residential building entrances
- Apartment access systems
- Villa pedestrian doors
- Commercial buildings
- Staff access doors
- Warehouse offices
- Factory entrances
- Server rooms
- Storage rooms
- Restricted access areas
- RFID access control systems
- Keypad door access systems
Professional K80 Power Supply Installation
Professional installation is recommended to ensure correct AC input wiring, 12V output connections, lock configuration and time-delay adjustment.
The installer should also calculate the total current consumption of all connected equipment to ensure it does not exceed the K80 power supply rating.
K80 Access Control Power Supply Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies K80 access control power supplies in UAE for residential, commercial and industrial door access systems.
Supply and installation are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
